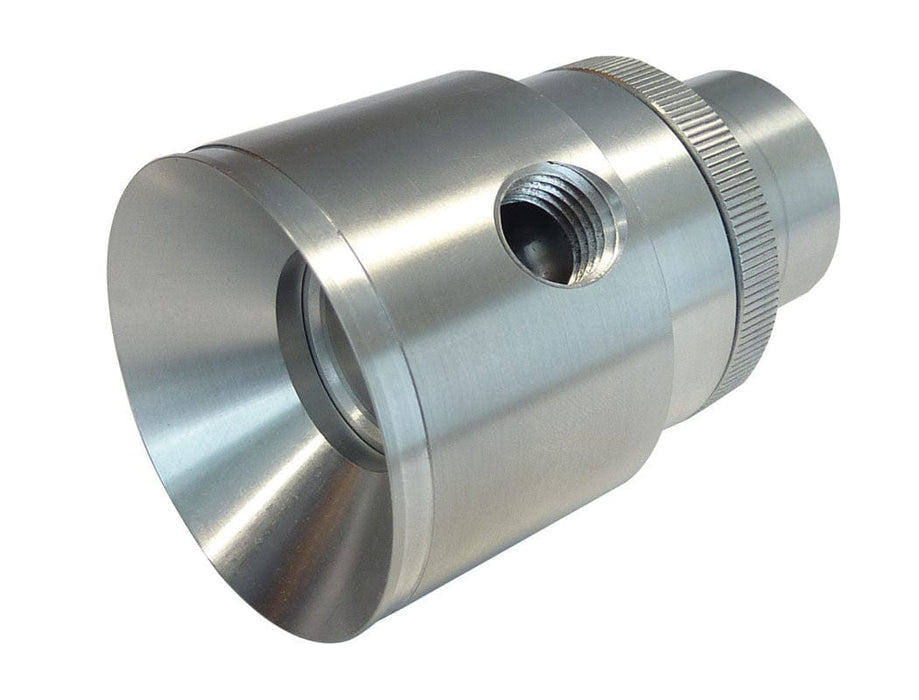

68.165 : TOPRING AIR FLOW AMPLIFIER 3/8 (F) NPT 1125 SCFM
68.165 : TOPRING AIR FLOW AMPLIFIER 3/8 (F) NPT 1125 SCFM
SPECIFICATIONS:
• Port size(F): 3/8 NPT
• Vacuum: 1.43" Hg
• Maximum Working Pressure: 250 PSI
• Output at 80 PSI: 1125 SCFM
• Setting: 45 SCFM
• Amplification Ratio: 25: 1
• Noise Level: 76 dB
• Dimensions : A) 2.5 in (64 mm) x B) 3.63 in (92 mm) x C) 3.63 in (92 mm) x D) 1.5 in ( 31 mm)
Material(s):
• Aluminum
FEATURES:
• Low cost way to move air, smoke, fumes and light materials
• Adjustable output without tools
• Quiet and safe, meet OSHA and other Health and Safety Agencies’ noise requirements
• No moving parts ensuring maintenance-free operation
• No electricity or explosion hazard
• Both the vacuum and discharge ends can be ducted
• Compact and lightweight
• Instant ON/OFF
• Airflow amplifiers use the energy from a small volume of compressed air to produce a high velocity, high volume, low pressure output
• TOPRING air amplifiers amplify compressed air input up to 25 times, allowing increased airflow while drastically reducing compressed air consumption and noise levels
