AZ Pneumatica Air Pilot Valves
AZ Pneumatica Air Pilot Valves (Pneumatically Piloted Valves)
• 3/2-5/2-5/3 spool valves with 1/8” NPT-1/4” NPT threaded ports BSP version available on request
• Installation in-line, gang or manifold mounted (refer to pages 192-201)
• Comprehensive range of actuations
• Versions with integrated logic element
• Special versions on request
• Installation in-line, gang or manifold mounted (refer to pages 192-201)
• Comprehensive range of actuations
• Versions with integrated logic element
• Special versions on request
Materials
Body: aluminium 11S End cups: aluminium 11S Springs: stainless steel Seals: NBR Spool: nickel plated aluminium
Body: aluminium 11S End cups: aluminium 11S Springs: stainless steel Seals: NBR Spool: nickel plated aluminium
CLICK HERE FOR COMPLETE CATALOG/ SPECS
REQUEST FOR QUOTE
Pneumatically piloted valves - 1/8" 22 mm
| Description | Article number | Part number | Manufacturer |
| 3/2 1/8" double pneumatic pilot | 00.025.4 | 321 CC | AZ Pneumatica |

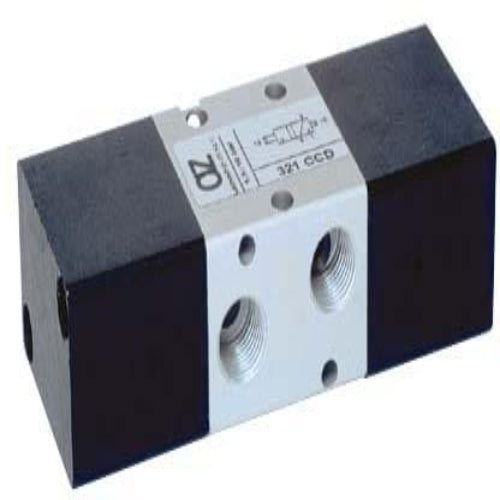

| 3/2 1/8" double pneumatic pilot - with differential | 00.024.4 | 321 CCD | AZ Pneumatica |
| 3/2 1/8" NC pneumatic pilot 0.6 bar - spring return | 00.015.4 | 321 MCS | AZ Pneumatica |
| 3/2 1/8" NC pneumatically piloted - spring return | 00.022.4 | 321 MC | AZ Pneumatica |
| 3/2 1/8" NO pneumatically piloted - spring return | 00.023.4 | 321 MCA | AZ Pneumatica |
| 321 CC 3/2 1/8" NPT double pneumatic pilot | US00.025.4 | 321 CC | AZ Pneumatica |
| 321 CCD 3/2 1/8" NPT double pneumatic pilot - with differential | US00.024.4 | 321 CCD | AZ Pneumatica |
| 321 MC 3/2 1/8" NPT pneumatic pilot - spring return | US00.022.4 | 321 MC | AZ Pneumatica |
| 321 MCA 3/2 1/8" NPT pneumatically piloted - spring return | US00.023.4 | 321 MCA | AZ Pneumatica |
| 5/2 1/8" double pneumatic pilot | 00.028.4 | 521 CC | AZ Pneumatica |
| 5/2 1/8" pneumatically piloted - spring return | 00.027.4 | 521 MC | AZ Pneumatica |
| 5/2 1/8"double pneumatic pilot - with differential | 00.030.4 | 521 CCD | AZ Pneumatica |

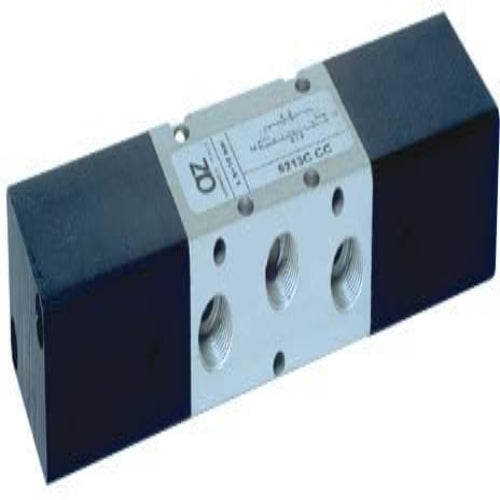

| 5/3 1/8" closed centres, double pneumatic pilot | 00.031.4 | 5213C CC | AZ Pneumatica |
| 5/3 1/8" open centres, double pneumatic pilot | 00.032.4 | 5213A CC | AZ Pneumatica |
| 5/3 1/8" pressurized centres, double pneumatic pilot | 00.043.4 | 5213P CC | AZ Pneumatica |
| 521 CC 5/2 1/8" NPT double pneumatic pilot | US00.028.4 | 521 CC | AZ Pneumatica |
| 521 CCD 5/2 1/8" NPT double pneumatic pilot - with differential | US00.030.4 | 521 CCD | AZ Pneumatica |
| 521 MC 5/2 1/8" NPT pneumatic pilot - spring return | US00.027.4 | 521 MC | AZ Pneumatica |
| 5213A CC 5/3 1/8" NPT open centres, double pneumatic pilot | US00.032.4 | 5213A CC | AZ Pneumatica |
| 5213C CC 5/3 1/8" closed centres, double pneumatic pilot | US00.031.4 | 5213C CC | AZ Pneumatica |
| 5213P CC 5/3 1/8" NPT pressurized centres, double pneumatic pilot | US00.043.4 | 5213P CC | AZ Pneumatica |
Pneumatically piloted valves - 1/4"
| Description | Article number | Part number | AZ Pneumatica |
| 5223P CC 5/3 1/4" NPT pressurized centres, double pneumatic pilot | US01.073.4 | 5223P CC | AZ Pneumatica |
| 5223C CC 5/3 1/4" NPT closed centres, double pneumatic pilot | US01.034.4 | 5223C CC | AZ Pneumatica |
| 5223C CC 5/3 1/4" BTP closed centres, double pneumatic pilot, aluminium version | 01.034.4A | 5223C CC | AZ Pneumatica |
| 5223A CC 5/3 1/4" NPT open centres, double pneumatic pilot | US01.035.4 | 5223A CC | AZ Pneumatica |
| 522 MC 5/2 1/4" NPT pneumatic pilot - spring return | US01.027.4 | 522 MC | AZ Pneumatica |
| 522 CC 5/2 1/4" NPT double pneumatic pilot | US01.028.4 | 522 CC | AZ Pneumatica |
| 5/3 1/4" pressurized centres, double pneumatic pilot | 01.073.4 | 5223P CC | AZ Pneumatica |

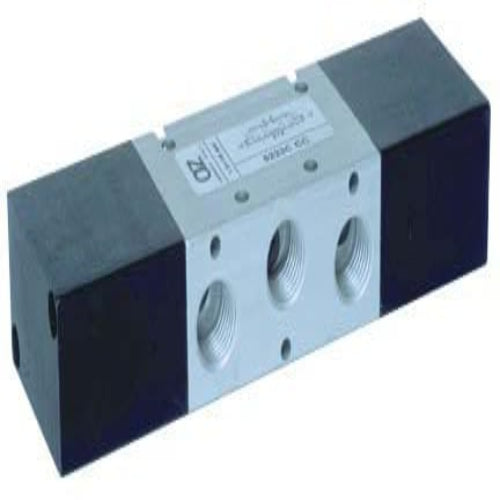

| 5/3 1/4" open centres, double pneumatic pilot | 01.035.4 | 5223A CC | AZ Pneumatica |
| 5/3 1/4" closed centres, double pneumatic pilot | 01.034.4 | 5223C CC | AZ Pneumatica |

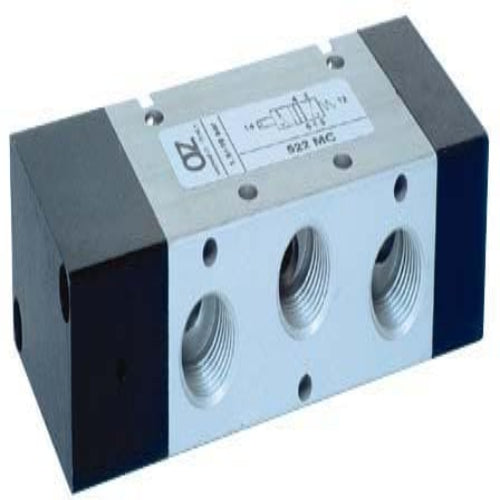

| 5/2 1/4" pneumatic pilot - spring return | 01.027.4 | 522 MC | AZ Pneumatica |

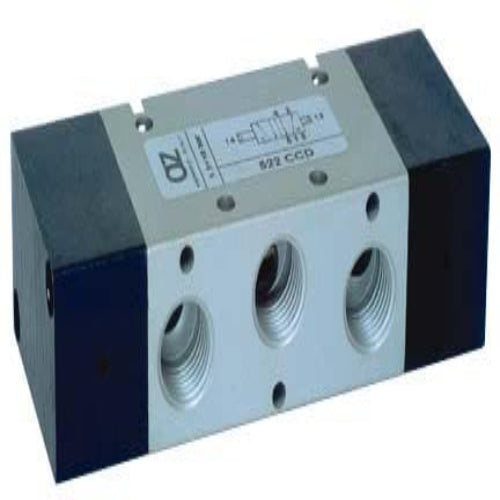

| 5/2 1/4" double pneumatic pilot - with differential | 01.030.4 | 522 CCD | AZ Pneumatica |

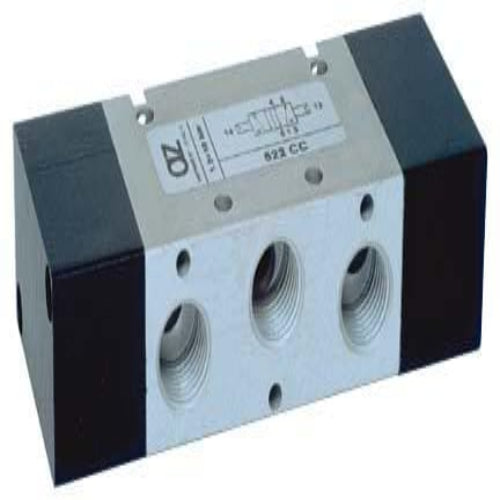

| 5/2 1/4" double pneumatic pilot | 01.028.4 | 522 CC | AZ Pneumatica |
| 322 MCA 3/2 1/4" NPT pneumatically piloted - spring return | US01.023.4 | 322 MCA | AZ Pneumatica |
| 322 MC 3/2 1/4" NPT NC pneumatic pilot - spring return | US01.022.4 | 322 MC | AZ Pneumatica |
| 322 CC 3/2 1/4" NPT double pneumatic pilot | US01.025.4 | 322 CC | AZ Pneumatica |
| 3/2 1/4" NO pneumatic pilot - spring return | 01.023.4 | 322 MCA | AZ Pneumatica |
| 3/2 1/4" NC pneumatic pilot - spring return | 01.022.4 | 322 MC | AZ Pneumatica |
| 3/2 1/4" double pneumatic pilot | 01.025.4 | 322 CC | AZ Pneumatica |
Pneumatically piloted valves - 1/2"
| Description | Article number | Part number | AZ Pneumatica |
| 3/2 1/2" double pneumatic pilot | 02.004.4 | 324 CC | AZ Pneumatica |
| 3/2 1/2" NC pneumatic pilot, spring return | 02.001.4 | 324 MC | AZ Pneumatica |
| 3/2 1/2" NO pneumatic pilot, spring return | 02.002.4 | 324 MCA | AZ Pneumatica |
| 324 CC 3/2 1/2" NPT double pneumatic pilot | US02.004.4 | 324 CC | AZ Pneumatica |
| 324 MC 3/2 1/2" NPT NC pneumatic pilot, spring return | US02.001.4 | 324 MC | AZ Pneumatica |
| 324 MCA 3/2 1/2" NPT NO pneumatic pilot, spring return | US02.002.4 | 324 MCA | AZ Pneumatica |
| 5/2 1/2" double pneumatic pilot | 02.008.4 | 524 CC | AZ Pneumatica |
| 5/2 1/2" pneumatic pilot, spring return | 02.006.4 | 524 MC | AZ Pneumatica |
| 5/3 1/2" closed centres, double pneumatic pilot | 02.010.4 | 5243C CC | AZ Pneumatica |
| 5/3 1/2" open centres, double pneumatic pilot | 02.011.4 | 5243A CC | AZ Pneumatica |
| 5/3 1/2" pressurized centres, double pneumatic pilot | 02.012.4 | 5243P CC | AZ Pneumatica |
| 524 CC 5/2 1/2" NPT double solenoid pilot | US02.008.4 | 524 CC | AZ Pneumatica |
| 524 MC 5/2 1/2" NPT pneumatic pilot, spring return | US02.006.4 | 524 MC | AZ Pneumatica |
Pneumatically piloted valves - 16 mm in line
| Description | Article number | Part number | AZ Pneumatica |
| 5/2 1/8" pneumatic pilot - spring return, 16 mm | 05.230.4 | 451 MC | AZ Pneumatica |
| 5/2 1/8" double pneumatic pilot, 16 mm | 05.177.4 | 451 CC | AZ Pneumatica |
Pneumatically piloted valves - NAMUR
| Description | Article number | Part number | AZ Pneumatica |
| NAMUR 5/2 1/4" pneumatic pilot - spring return | 01.008.4 | 582 MC | AZ Pneumatica |
Please contact us for queries, or quote requests "contact@pneumaticspro.ca" +1-647-608-1949
View all productsContact us
