• 3/2-5/2-5/3 spool valves with 1/8” - 1/4” - 1/2" NPT threaded ports, BSP version avaiable on request
• Installation in any position
• Comprehensive range of actuations 1
• Push/pull and lever valves: thread for panel mounting M18x1.5
• Version for actuator for panel mounting (with ø22 hole)
• Special versions on request
Materials
Body: aluminium 11S End cups: aluminium 11S Springs: stainless steel Seals: NBR Spool: nickel plated aluminium Internal parts: brass OT58 ATEX valves on request
CLICK HERE FOR COMPLETE CATALOG/ SPECS
REQUEST FOR QUOTE
| Manually actuated valves - 1/8" 16 mm | |||
| Description | Article number | Part number | Manufacturer |
| 16 mm 3/2 1/8" detented push/pull | 05.214.4 | 431 TT | AZ Pneumatica |
| 16 mm 3/2 1/8" push button RED - spring return | 05.142.4 | 431 MGR | AZ Pneumatica |
| 16 mm 3/2 1/8" push/pull, spring return | 05.213.4 | 431 MT | AZ Pneumatica |
| 16 mm 3/2 1/8" valve, lever with movement in all directions, spring return | 05.174.4 | 431 MLL | AZ Pneumatica |
| 16 mm 5/2 1/8" bi-stable top lever | 05.217.4 | 451 LL | AZ Pneumatica |
| 16 mm 5/2 1/8" detented push/pull | 05.216.4 | 451 TT | AZ Pneumatica |
| 16 mm 5/2 1/8" push button RED - spring return | 05.146.4 | 451 MGR | AZ Pneumatica |
| 16 mm 5/2 1/8" push button YELLOW - spring return | 05.147.4 | 451 MGG | AZ Pneumatica |
| 16 mm 5/2 1/8" push/pull, spring return | 05.215.4 | 451 MT | AZ Pneumatica |
| 16 mm 5/2 1/8" valve, lever with movement in all directions, spring return | 05.219.4 | 451 MLL | AZ Pneumatica |
| Manual actuated valve, 16 mm, 3/2 1/8", bi-stable top lever | 05.169.4 | 431 LL | AZ Pneumatica |
| AZ Pneumatica | |||
| Manually actuated valves - 1/8" 22 mm | |||
| Description | Article number | Part number | AZ Pneumatica |
| 3/2 1/8" 90° bi-stable lever | 00.053.4 | 321 LL90 | AZ Pneumatica |
| 3/2 1/8" 90° lever - spring return | 00.052.4 | 321 ML90 | AZ Pneumatica |
| 3/2 1/8" bi-stable top lever | 00.050.4 | 321 LL | AZ Pneumatica |
| 3/2 1/8" detented push/pull | 00.068.4 | 321 TT | AZ Pneumatica |
| 3/2 1/8" NC servo-piloted tappet with actuator adaptor for panel mounting - spring return | 00.072.4 | 321 MB | AZ Pneumatica |
| 3/2 1/8" push/pull with spring return | 00.075.4 | 321 MT | AZ Pneumatica |
| 321 LL90 3/2 1/8" NPT 90° bi-stable lever | US00.053.4 | 321 LL90 | AZ Pneumatica |
| 321 MB 3/2 1/NPT NC actuator adapter for panel mounting spring return-Aluminum | US00.072.4 | 321 MB | AZ Pneumatica |
| 321 ML90 3/2 1/8" NPT 90° lever - spring return | US00.052.4 | 321 ML90 | AZ Pneumatica |
| 321 MT 3/2 1/8" NPT push/pull with spring return | US00.075.4 | 321 MT | AZ Pneumatica |
| 5/2 1/8" 90° bi-stable lever | 00.055.4 | 521 LL90 | AZ Pneumatica |
| 5/2 1/8" 90° lever - spring return | 00.054.4 | 521 ML90 | AZ Pneumatica |
| 5/2 1/8" bi-stable top lever | 00.051.4 | 521 LL | AZ Pneumatica |
| 5/2 1/8" detented push/pull | 00.069.4 | 521 TT | AZ Pneumatica |
| 5/2 1/8" push/pull with spring return | 00.076.4 | 521 MT | AZ Pneumatica |
| 5/2 1/8" servo-piloted tappet with actuator adaptor for panel mounting - spring return | 00.073.4 | 521 MB | AZ Pneumatica |
| 5/2 1/8" servo-piloted tappet with actuator adaptor for panel mounting - spring return, aluminium version | 00.073.4A | 521 MB | AZ Pneumatica |
| 5/2 1/8" servo-piloted tappet with actuator adaptor for panel mounting 90° - spring return | 00.071.4 | 521 MB90 | AZ Pneumatica |
| 5/2 1/8" tappet - spring return | 00.078.4 | 521 MP | AZ Pneumatica |
| 5/3 1/8" 90° closed centres lever - spring return to centre | 00.056.4 | 5213C ML90 | AZ Pneumatica |
| 5/3 1/8" 90° closed centres lever - three detented positions | 00.057.4 | 5213C LL90 | AZ Pneumatica |
| 5/3 1/8" 90° open centres lever - spring return to centre | 00.058.4 | 5213A ML90 | AZ Pneumatica |
| 5/3 1/8" 90° open centres lever - three detented positions | 00.059.4 | 5213A LL90 | AZ Pneumatica |
| 5/3 1/8" 90° pressurized centres lever - spring return to centre | 00.042.4 | 5213P ML90 | AZ Pneumatica |
| 5/3 1/8" 90° pressurized centres lever - three detented positions | 00.060.4 | 5213P LL90 | AZ Pneumatica |
| 5/3 1/8" top lever - spring return to centre | 00.151.4 | 5213A ML | AZ Pneumatica |
| 521 LL 5/2 1/8" NPT bi-stable top lever | US00.051.4 | 521 LL | AZ Pneumatica |
| 521 LL90 5/2 1/8" NPT 90° bi-stable lever | US00.055.4 | 521 LL90 | AZ Pneumatica |
| 521 MB 5/2 1/8" NPTservo-piloted tappet with actuator adptr for panel mnting-spring | US00.073.4 | 521 MB | AZ Pneumatica |
| 521 ML90 5/2 1/8" NPT 90° lever - spring return | US00.054.4 | 521 ML90 | AZ Pneumatica |
| 521 MT 5/2 1/8" NPT push/pull with spring return | US00.076.4 | 521 MT | AZ Pneumatica |
| 521 TT 5/2 1/8" NPT detented push/pull | US00.069.4 | 521 TT | AZ Pneumatica |
| 5213A LL90 5/3 1/8" NPT open centers, 90° lever, three detented positions | US00.059.4 | 5213A LL90 | AZ Pneumatica |
| 5213A ML90 5/3 1/8" NPT open centers, 90° lever, spring return to center | US00.058.4 | 5213A ML90 | AZ Pneumatica |
| 5213C LL90 5/3 1/8" NPT closed centers, 90° lever, three detented positions | US00.057.4 | 5213C LL90 | AZ Pneumatica |
| 5213C ML90 5/3 1/8" NPT closed centers, 90° lever, spring return to center | US00.056.4 | 5213C ML90 | AZ Pneumatica |
| 5213P ML90 5/3 1/8" NPT pressurized centers, 90° lever, spring return to center | US00.042.4 | 5213P ML90 | AZ Pneumatica |
| 5231P LL90 5/3 1/8" NPT pressurized centers, 90° lever, three detented positions | US00.060.4 | 5213P LL90 | AZ Pneumatica |
| US321 MBA 3/2 1/8" NPT NO actuator adaptor for panel mounting, spring return | US00.061.4 | 321 MBA | AZ Pneumatica |
| AZ Pneumatica | |||
| Manually actuated valves - 1/4" | |||
| Description | Article number | Part number | AZ Pneumatica |
| 3/2 1/4" 90° bi-stable lever | 01.055.4 | 322 LL90 | AZ Pneumatica |
| 3/2 1/4" 90° lever - spring return | 01.054.4 | 322 ML90 | AZ Pneumatica |

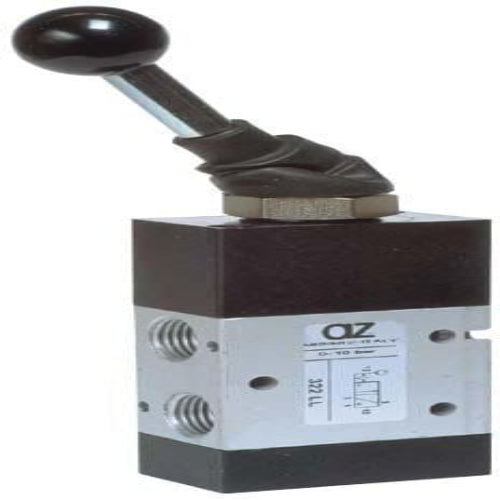

| 3/2 1/4" bi-stable top lever | 01.049.4 | 322 LL | AZ Pneumatica |

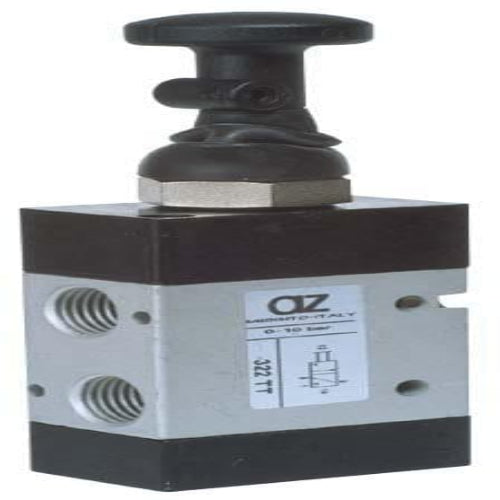

| 3/2 1/4" detented push/pull | 01.067.4 | 322 TT | AZ Pneumatica |

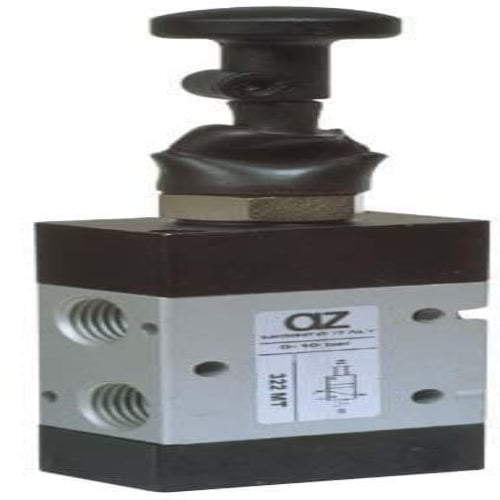

| 3/2 1/4" push/pull with spring return | 01.066.4 | 322 MT | AZ Pneumatica |
| 322 LL 3/2 1/4" NPT bi-stable top lever | US01.049.4 | 322 LL | AZ Pneumatica |
| 322 LL90 3/2 1/4" NPT 90° bi-stable lever | US01.055.4 | 322 LL90 | AZ Pneumatica |
| 322 ML90 3/2 1/4" NPT 90° lever spring return-manually actuated valve | US01.054.4 | 322 ML90 | AZ Pneumatica |
| 322 MT 3/2 1/4" NPT push/pull with spring return | US01.066.4 | 322 MT | AZ Pneumatica |
| 322 TT 3/2 1/4" NPT detented push/pull | US01.067.4 | 322 TT | AZ Pneumatica |

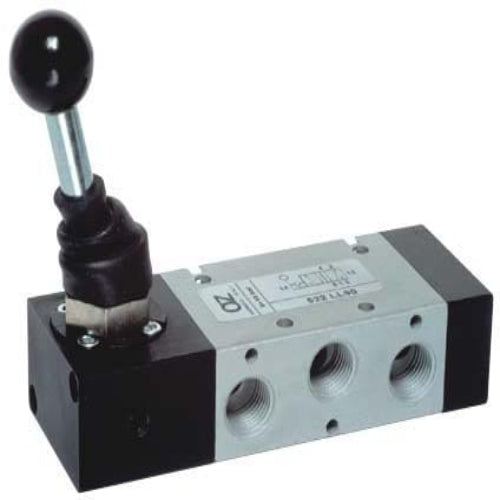

| 5/2 1/4" 90° bi-stable lever | 01.057.4 | 522 LL90 | AZ Pneumatica |
| 5/2 1/4" 90° lever - spring return | 01.056.4 | 522 ML90 | AZ Pneumatica |

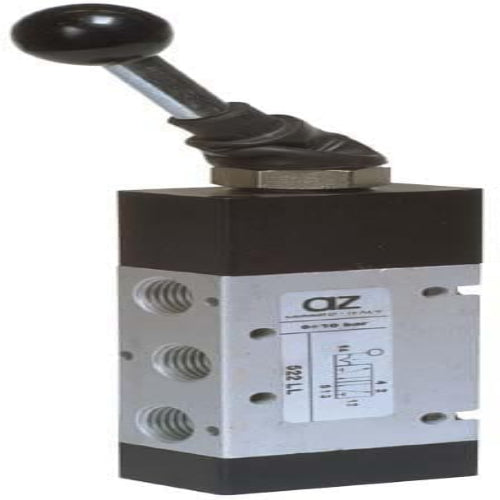

| 5/2 1/4" bi-stable top lever | 01.050.4 | 522 LL | AZ Pneumatica |

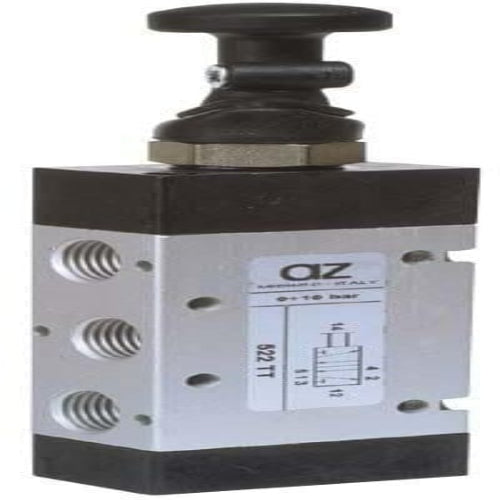

| 5/2 1/4" detented push/pull | 01.069.4 | 522 TT | AZ Pneumatica |

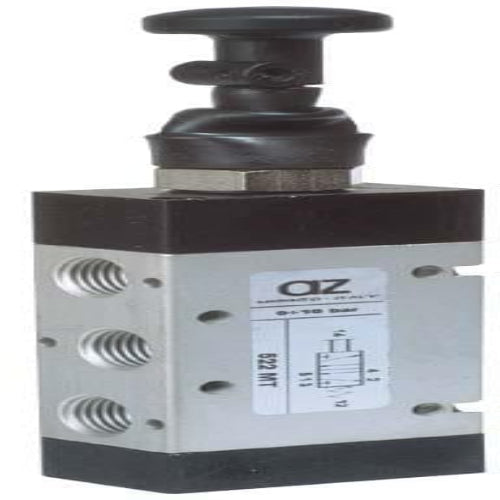

| 5/2 1/4" push/pull with spring return | 01.068.4 | 522 MT | AZ Pneumatica |
| 5/3 1/4" 90° closed centres lever - spring return to centre | 01.061.4 | 5223C ML90 | AZ Pneumatica |
| 5/3 1/4" 90° closed centres lever - three detented positions | 01.059.4 | 5223C LL90 | AZ Pneumatica |
| 5/3 1/4" 90° open centres lever - spring return to centre | 01.062.4 | 5223A ML90 | AZ Pneumatica |
| 5/3 1/4" 90° open centres lever - three detented positions | 01.060.4 | 5223A LL90 | AZ Pneumatica |

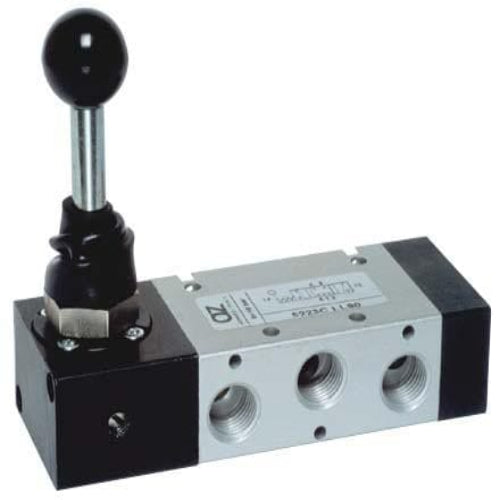

| 5/3 1/4" 90° pressurized centres lever - spring return to centre | 01.063.4 | 5223P ML90 | AZ Pneumatica |
| 5/3 1/4" 90° pressurized centres lever - three detented positions | 01.058.4 | 5223P LL90 | AZ Pneumatica |
| 522 LL 5/2 1/4" NPT bi-stable top lever | US01.050.4 | 522 LL | AZ Pneumatica |
| 522 LL90 5/2 1/4" NPT 90° bi-stable lever | US01.057.4 | 522 LL90 | AZ Pneumatica |
| 522 ML90 5/2 1/4" NPT 90° lever - spring return | US01.056.4 | 522 ML90 | AZ Pneumatica |
| 522 MT 5/2 1/4" NPT push/pull with spring return | US01.068.4 | 522 MT | AZ Pneumatica |
| 522 TT 5/2 1/4" NPT detented push/pull | US01.069.4 | 522 TT | AZ Pneumatica |
| 5223A LL90 5/3 1/4" NPT 90° open centers lever - three detented positions | US01.060.4 | 5223A LL90 | AZ Pneumatica |
| 5223A ML90 5/3 1/4" NPT 90° open centers lever - spring return to center | US01.062.4 | 5223A ML90 | AZ Pneumatica |
| 5223C LL90 5/3 1/4" NPT 90° degree - 3 position lever - closed centers | US01.059.4 | 5223C LL90 | AZ Pneumatica |
| 5223C ML90 5/3 1/4" NPT 90° closed centers lever - spring return to center | US01.061.4 | 5223C ML90 | AZ Pneumatica |
| 5223P LL90 5/3 1/4" 90° NPT pressurized centers lever - three detented positions | US01.058.4 | 5223P LL90 | AZ Pneumatica |
| 5223P ML90 5/3 1/4" NPT 90° pressurized centers lever - spring return to center | US01.063.4 | 5223P ML90 | AZ Pneumatica |
| AZ Pneumatica | |||
| Manually actuated valves - 1/2" | |||
| Description | Article number | Part number | AZ Pneumatica |

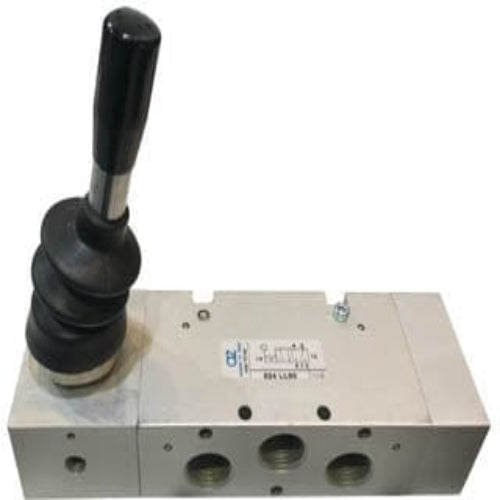

| 524 LL90 5/2 1/2" NPT 90 degree bi-stable lever | US02.060.4 | 524 LL90 | AZ Pneumatica |
| 524 ML90 5/2 1/2" NPT 90° lever - spring return | US02.061.4 | 524 ML90 | AZ Pneumatica |

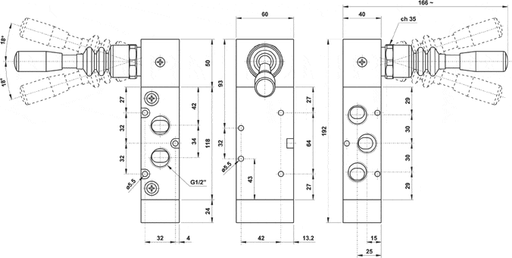

| 5243A LL90 5/3 1/2" NPT 90° open centers lever - three detented positions | US02.063.4 | 5243A LL90 | AZ Pneumatica |
| 5243A ML90 5/3 1/2" NPT 90° open centers lever - spring return to center | US02.066.4 | 5243A ML90 | AZ Pneumatica |
| 5243C LL90 5/3 1/2" NPT 90 degree 3 position lever-closed center | US02.062.4 | 5243C LL90 | AZ Pneumatica |
| 5243C ML90 5/3 1/2" NPT 90° closed centers lever - spring return to center | US02.065.4 | 5243C ML90 | AZ Pneumatica |
| 5243P LL90 5/3 1/2" 90° NPT pressurized centers lever - three detented positions | US02.064.4 | 5243P LL90 | AZ Pneumatica |
| 5243P ML90 5/3 1/2" NPT 90° pressurized centers lever - spring return to center | US02.067.4 | 5243P ML90 | AZ Pneumatica |
| AZ Pneumatica | |||
| Rotary valves | |||
| Description | Article number | Part number | AZ Pneumatica |
| 4/3 1/4" rotary valve - three detented positions - closed centres - ports on the bottom | 10.071.4 | AZ Pneumatica | |
| 4/3 1/4" rotary valve - three detented positions - closed centres - ports on the side | 10.069.4 | AZ Pneumatica | |
| 4/3 1/4" rotary valve - three detented positions - open centres - ports on the side | 10.070.4 | AZ Pneumatica | |
| AZ Pneumatica | |||
|
Pedal Pneumatic Valves CLICK HERE FOR COMPLETE CATALOG/ SPECS |
|||
| Description | Article number | Part number | AZ Pneumatica |
| Bi-stable 5/2 1/4" pedal with protection cover | 01.053.4N | PED 502 B | AZ Pneumatica |
| Bi-stable 5/2 1/4" pedal without protection cover | 01.081.4N | PEDS 502 B | AZ Pneumatica |
| Mono-stable 5/2 1/4" pedal with protection cover | 01.052.4N | PED 502 M | AZ Pneumatica |
| Mono-stable 5/2 1/4" pedal without protection cover | 01.080.4N | PEDS 502 M | AZ Pneumatica |
| PED 502 B bi-stable pedal valve 5/2 1/4" NPT with protection cover | US01.053.4N | PED 502 B | AZ Pneumatica |
| PED 502 M mono-stable pedal valve 5/2 1/4" NPT with protection cover | US01.052.4N | PED 502 M | AZ Pneumatica |
| Valve 5/2 1/4" for foot pedal | 01.051.3 | AZ Pneumatica | |
| AZ Pneumatica | |||
| Electric pedals | |||
| Description | Article number | Part number | AZ Pneumatica |
| Electric mini-pedal with 2 m cable | 01.158.4 | AZ Pneumatica | |
| Electric mini-pedal without cable | 01.159.4 | AZ Pneumatica | |
| Pedal with double electric contact NC-NO, bi-stable with protection cover | 01.149.4N | PED EEB | AZ Pneumatica |
| Pedal with double electric contact NC-NO, bi-stable without protection cover | 01.153.4N | PEDS EEB | AZ Pneumatica |
| Pedal with double electric contact NC-NO, mono-stable with protection cover | 01.148.4N | PED EEM | AZ Pneumatica |
| Pedal with double electric contact NC-NO, mono-stable without protection cover | 01.152.4N | PEDS EEM | AZ Pneumatica |
| Pedal with electric contact NC-NO, bi-stable with protection cover | 01.115.4N | PED EB | AZ Pneumatica |
| Pedal with electric contact NC-NO, bi-stable without protection cover | 01.144.4N | PEDS EB | AZ Pneumatica |
| Pedal with electric contact NC-NO, mono-stable with protection cover | 01.087.4N | PED EM | AZ Pneumatica |
| Pedal with electric contact NC-NO, mono-stable without protection cover | 01.143.4N | PEDS EM | AZ Pneumatica |
| AZ Pneumatica | |||
| Mini-pedals | |||
| Description | Article number | Part number | AZ Pneumatica |
| Pedal mono-stable with 3/2 NC microvalve, push-in fittings ø4 | 08.184.4 | PED 304 M | AZ Pneumatica |
| Pedal mono-stable with 3/2 NC microvalve, thread M5 | 08.204.4 | PED 305 M | AZ Pneumatica |
