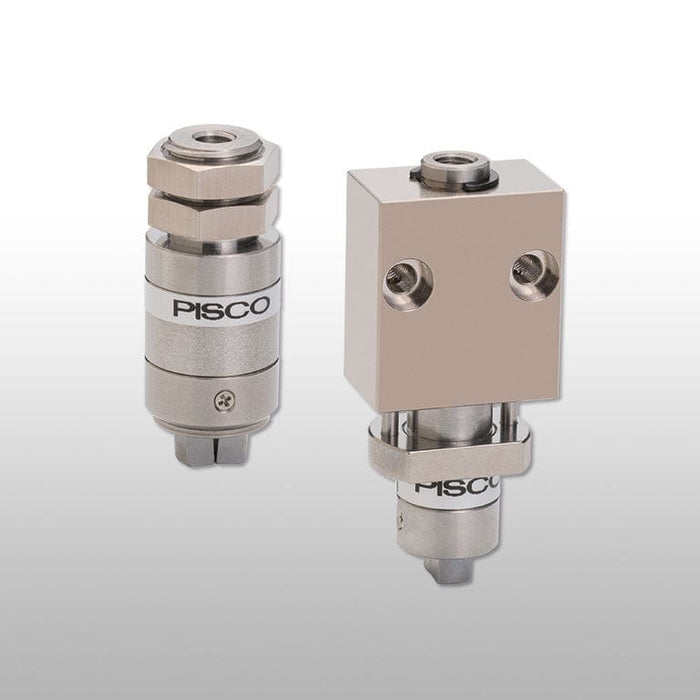

CHM08BB08H : PISCO MINI INTERNAL GRIPPER
by PISCO
Original price
$119.28
-
Original price
$119.28
Original price
$119.28
$119.28
-
$119.28
Current price
$119.28
CHM08BB08H : PISCO MINI INTERNAL GRIPPER
CHM B
Panel Mount Type
Panel Mount Type
This is another series of stainless steel air gripper models featuring light weight and a miniature size. No dedicated fingers are necessary for works of simple shapes. The work stopper assures stable gripping. The floating type makes more effective use of the work stopper, and prevents damage due to bumping.
Configured Specifications
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. |
|---|---|---|---|
| Type | Main Body | Operation Method | Single Acting Type (Normally Close) |
| Main Body Shape | Cylindrical Shape | Gripping Force (Closed Side at 0.5 Mpa)(N) | 0.08 |
| Gripping Force (Open Side at 0.5 Mpa)(N) | 0.08 | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No |
| Operating Pressure Range(MPa) | 0.2～0.7 | Mounting Holder Shape | Panel Mount Type |
| Gripper Finger Shape | For Circular Hole-shaped Workpiece | Job dimensions groove width(mm) | - |
| Work dimensions hole diameter(mm) | 8~10 | - | - |
Basic Information
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. | Type | Main Body |
|---|---|---|---|---|---|
| Operation Method | Single Acting Type (Normally Close) | Main Body Shape | Cylindrical Shape | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No | Operating Pressure Range(MPa) | 0.2::0.7 |
| Mounting Holder Shape | Panel Mount Type |
Product Notes: Please check the product specification for the part number CHM08BB08H on the Opening Chuck, Panel Mount Type. The CHM08BB08H is included in our offerings for Nihon Pisco Pneumatic Grippers and our full line of Nihon Pisco products.
