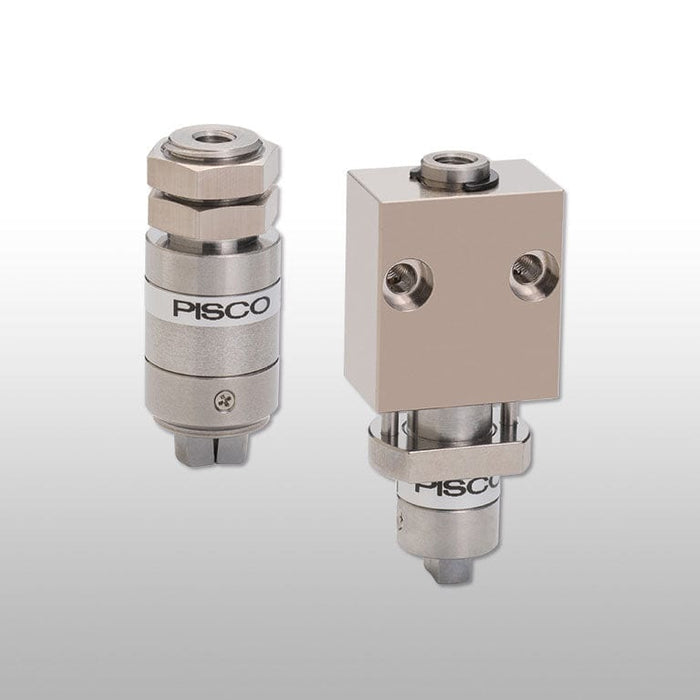

CHM08BE06H : PISCO MINI INTERNAL GRIPPER
CHM B
Floating Block Type
Gripper in Parallel
Shock-absorb Block in Parallel (Opening Gripper CHM)
This is another series of stainless steel air gripper models featuring light weight and a miniature size. No dedicated fingers are necessary for works of simple shapes. The work stopper assures stable gripping. The floating type makes more effective use of the work stopper, and prevents damage due to bumping.
Configured Specifications
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. |
|---|---|---|---|
| Type | Main Body | Operation Method | Single Acting Type (Normally Close) |
| Main Body Shape | Cylindrical Shape | Gripping Force (Closed Side at 0.5 Mpa)(N) | 0.08 |
| Gripping Force (Open Side at 0.5 Mpa)(N) | 0.08 | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No |
| Operating Pressure Range(MPa) | 0.2～0.7 | Mounting Holder Shape | Block Type with Floating Chuck Direction Parallel |
| Gripper Finger Shape | For Circular Hole-shaped Workpiece | Job dimensions groove width(mm) | - |
| Work dimensions hole diameter(mm) | 6~8 | - | - |
Basic Information
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. | Type | Main Body |
|---|---|---|---|---|---|
| Operation Method | Single Acting Type (Normally Close) | Main Body Shape | Cylindrical Shape | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No | Operating Pressure Range(MPa) | 0.2::0.7 |
| Mounting Holder Shape | Block Type with Floating Chuck Direction Parallel |
Product Notes: Please check the product specification for the part number CHM08BE06H on the Open Chuck, Floating Attachment Block Type, Chuck Direction Parallel. The CHM08BE06H is included in our offerings for Nihon Pisco Pneumatic Grippers and our full line of Nihon Pisco products.
