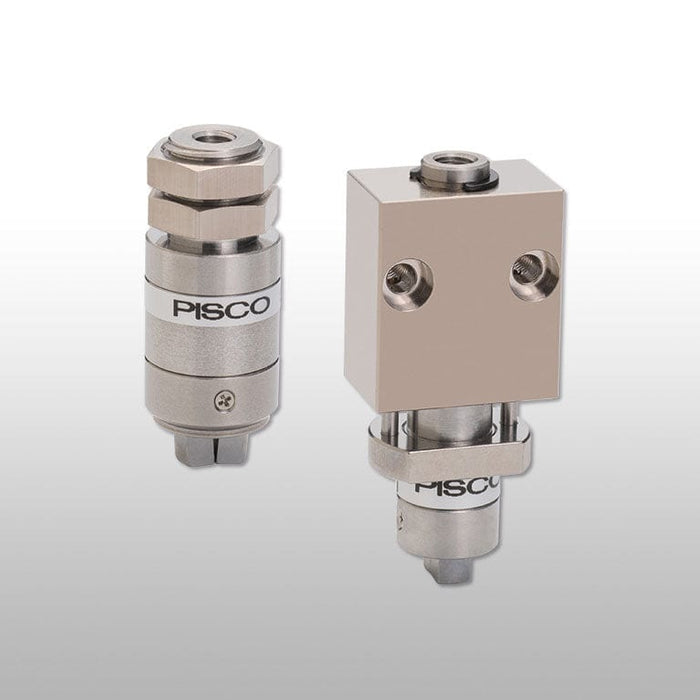

CHM08BF03C : PISCO MINI INTERNAL GRIPPER
by PISCO
Original price
$186.18
-
Original price
$186.18
Original price
$186.18
$186.18
-
$186.18
Current price
$186.18
CHM08BF03C : PISCO MINI INTERNAL GRIPPER
[Features]
· Stainless steel air chuck with light weight and super small.
· Simple form doesn't need dedicated nails and can hold work directly.
· Stable chucking with the work stopper.
· The type with floating can use the work stopper more effectively and prevents the damages caused by thrusting
Configured Specifications
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. |
|---|---|---|---|
| Type | Main Body | Operation Method | Single Acting Type (Normally Close) |
| Main Body Shape | Cylindrical Shape | Gripping Force (Closed Side at 0.5 Mpa)(N) | 0.08 |
| Gripping Force (Open Side at 0.5 Mpa)(N) | 0.08 | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No |
| Operating Pressure Range(MPa) | 0.2～0.7 | Mounting Holder Shape | Block Type with Floating Chuck Direction Perpendicular |
| Gripper Finger Shape | For Groove-shaped Workpiece | Job dimensions groove width(mm) | 3~5 |
| Work dimensions hole diameter(mm) | - | - | - |
Basic Information
| How Grip | Swing Type of Opening | Number of Fingers | 2 pcs. | Type | Main Body |
|---|---|---|---|---|---|
| Operation Method | Single Acting Type (Normally Close) | Main Body Shape | Cylindrical Shape | Environment, Applications | Standard |
| Additional Function | No | Stroke Adjustment Mechanism | No | Operating Pressure Range(MPa) | 0.2::0.7 |
| Mounting Holder Shape | Block Type with Floating Chuck Direction Perpendicular |
Product Notes: Please check the product specification for the part number CHM08BF03C on the Opening Chuck, Block Type with Floating Chuck, Direction Perpendicular. The CHM08BF03C is included in our offerings for Nihon Pisco Pneumatic Grippers and our full line of Nihon Pisco products.
