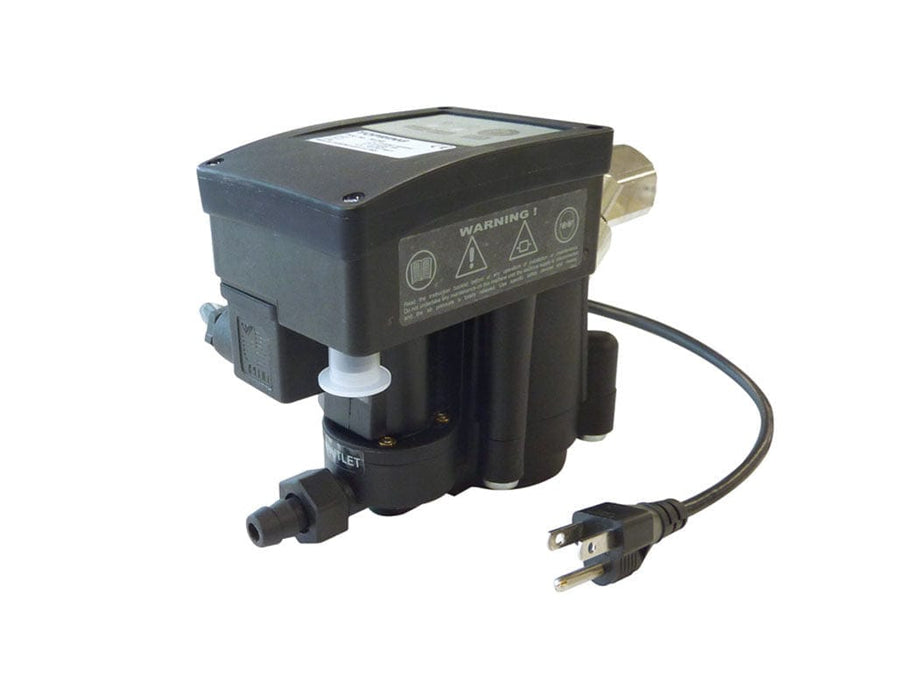

59.248 : TOPRING ZERO AIR LOSS automatic drain 270 SCFM 1/2 (F) NPT ELECTRIC CORD LOGIDRAIN
59.248 : TOPRING ZERO AIR LOSS automatic drain 270 SCFM 1/2 (F) NPT ELECTRIC CORD LOGIDRAIN
SPECIFICATIONS:
• With electrical cord
• Connections
• Inlet: 1/2 (F) NPT
• Outlet I.D (Hose barb): 12 mm
Capacity:
• Compressor, Aftercooler: 270 SCFM
• Refrigeration, Air Dryer: 533 SCFM
• Filter, Water Seperator: 2698 SCFM
• Maximum Supply Pressure: 230 PSI
• Working Temperature: 1 to 60 °C
• Voltage: 115 VAC / 1ph / 50-60 Hz
• Ball Valve Strainer included
• Dimensions: (H) 107mm x (W) 69 mm x (D) 160 mm
Material(s):
• Body: Polyamide
• Chamber: Aluminum
• Valve Internal Parts: Stainless steel
• Diaphragm: Fluoroelastomer
FEATURES:
• No wastage of compressed air
• Electronic condensate drains with digital level control
• Intelligent logic based on an 8-bit microprocessor recording events on an integral flash memory
• "Easy-lock revolving" connection
• Adjustable for vertical and/or horizontal connections
• Integrated filter to collect contaminated condensate
• Easy to clean and maintain
• Remote alarm connection
• Receiver with treatment resistent to most aggressive condensates, like those of oil-free compressors
• Fast easy-lock connection
• Connection: for drainage tube
• Built-in dirt screen easy to clean prevents the solenoid from clogging
• Dry alarm contact, the drain is equiped with a special alarm cycle that starts working in case of trouble
• Revolving top condensate inlet offering an additional balance line connection
