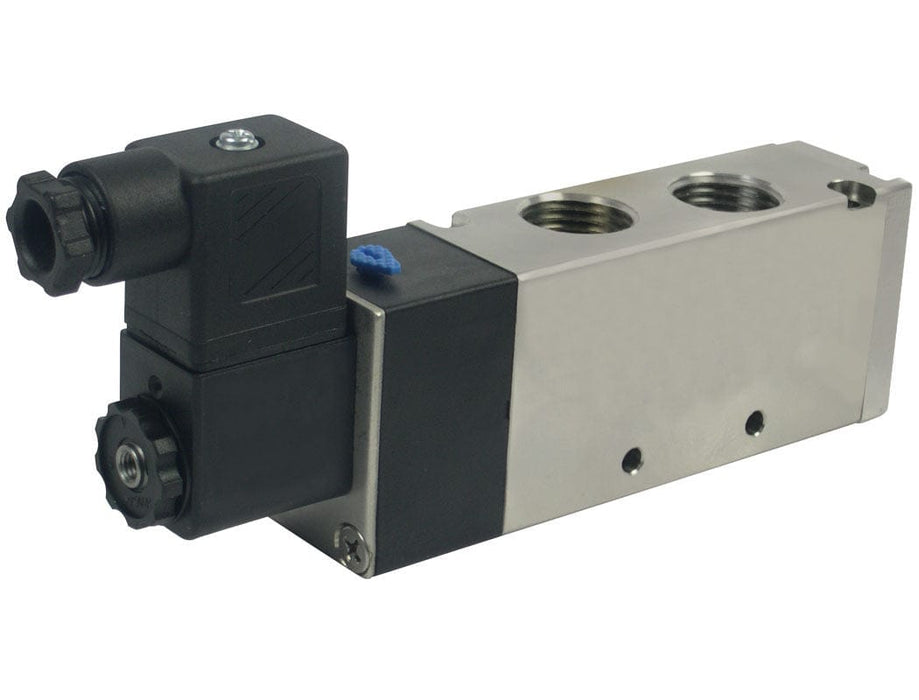

80.762.03 : VALVE SINGLE SOLENOID ELECTRIC 24VDC 5/2 3/8 NPT MAXPRO
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
80.762.03 : VALVE SINGLE SOLENOID ELECTRIC 24VDC 5/2 3/8 NPT MAXPRO
SPECIFICATIONS
• Cv: 1.94
• Port Size: 3/8 (F) NPT
• 5 Ways /2 Positions:
• Type: Single solenoid
• Voltage: 24 VDC
• Manual Override: Press-button
• Voltage Fluctuation: ± 10 %
• Response Time: 0,1 ms
• Maximum Cycles/Minute: 600 to 900
• Working Pressure: 22 to 114 PSI
• Working Temperature: -10 to 60 °C
Material(s):
• Body: Anodized Aluminum
• Seals: Oil resistant rubber seals
• Spool: Aluminum
FEATURES
• Compact design
• High flow
• Highly reliable spool technology
• Standard plug connector (DIN type)
• A “maintained” electrical signal shifts the single solenoid valve. When the signal is removed, the valve returns to its normal positions These valves can be used to provide pilot signals for larger valves
