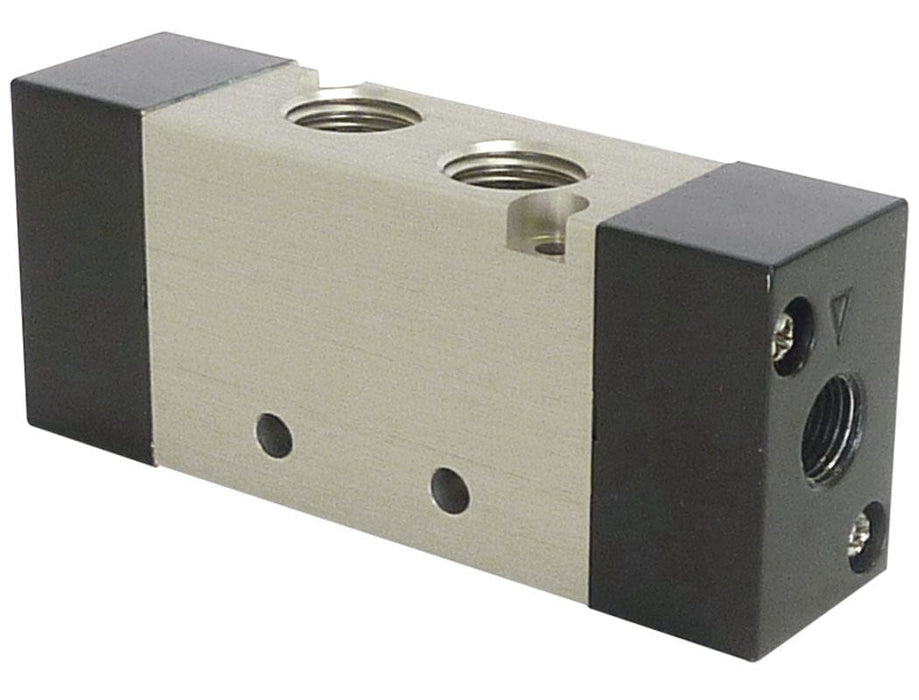

80.783 : VALVE DOUBLE REMOTE PILOT 5/2 1/4 NPT MAXPRO

by TOPRING
Original price $84.16 - Original price $84.16
Original price
$84.16
$84.16 - $84.16
Current price $84.16

TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC

80.783 : VALVE DOUBLE REMOTE PILOT 5/2 1/4 NPT MAXPRO

SPECIFICATIONS
• Cv: 1.00
• Port Size: 1/4 (F) NPT
• 5 Ways / 2 Positions:
• Type: Doble remote pilot
• Working Pressure: 0 to 114 PSI
• Working Temperature: -10 to 80 °C
• Pilot Port: 1/8 NPT

FEATURES
• Compact design
• High flow
• Highly reliable spool technology
• Standard plug connector (DIN type)
• A “momentary” pressure applied to one pilot section shifts the double pilot valve. The valve remains in this positions until a “momentary” pressure signal is applied to the other pilot section.

CLICK HERE FOR PDF (CATALOG)
