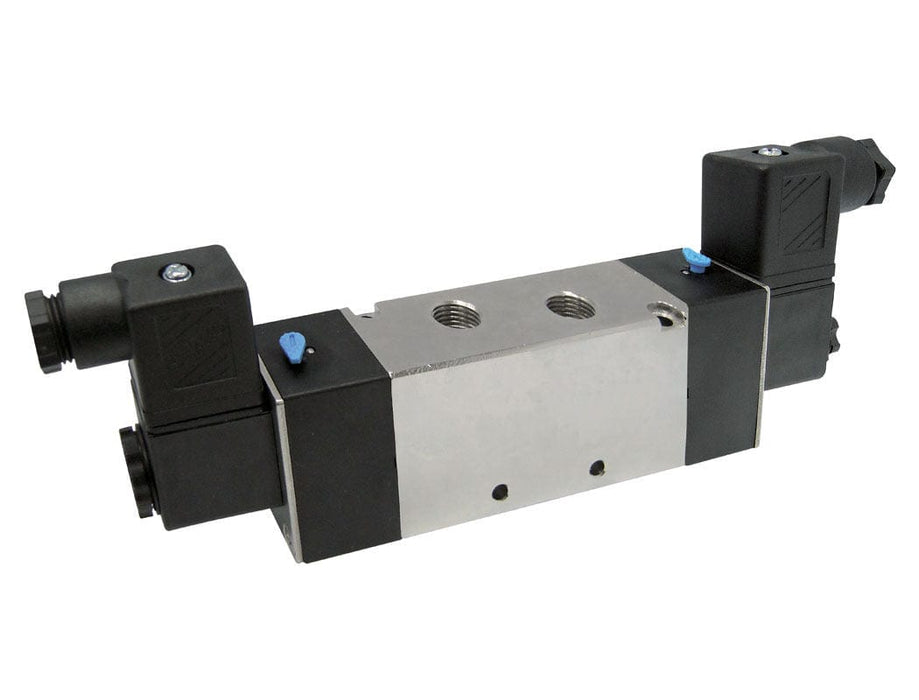

80.871 : VALVE STAINLESS STEEL DOUBLE SOLENOID 110VAC 5/2 1/4 NPT MAXPRO
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
80.871 : VALVE STAINLESS STEEL DOUBLE SOLENOID 110VAC 5/2 1/4 NPT MAXPRO
SPECIFICATIONS
• Cv: 1.94
• Port size: 1/4 (F) NPT
• 5 Ways / 2 Positions
• Type: Double solenoid
• Voltage: 110 VAC
• Manual Override: Press-button
• Voltage Fluctuation: ±10%
• Fluid: Filtered air (lubricated or oil free)
• Response Time: 0,2 ms
• Maximum Cycles/Minute: 600 to 900
• Working Pressure: 21.3 to 114 PSI
• Temperature Range: -10 to 60 °C
Material(s):
• STAINLESS STEEL SUS 316
FEATURES
• Compact design
• High flow
• Highly reliable spool technology
• Standard plug connector (DIN type)
• A “momentary” electrical signal applied to one of the solenoids shifts the double solenoid valve. The valve remains in this positions until a “momentary” signal is applied to the other solenoid. A “maintained” electrical signal applied alternately to the solenoids
shifts the 3 positions double solenoid valve. When the signal is removed, springs return the valve to its center positions.
