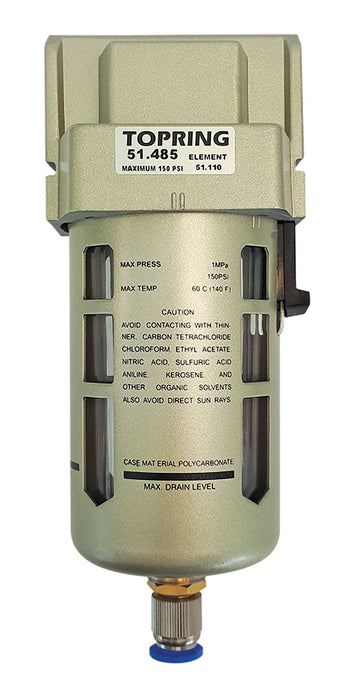

51.485 : TOPRING AIRFLO 400 COALESCING FILTER 1/2 SEMI-AUTO
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
51.485 : TOPRING AIRFLO 400 COALESCING FILTER 1/2 SEMI-AUTO
SPECIFICATIONS:
• Port Size: 1/2 (F) NPT
• Maximum Airflow at 100 PSI: 84 SCFM
• Maximum Working Pressure: 150 PSI
• Working Temperature: 5 to 60 °C
• Filtration: 0.01 micron
• Drain: Semi-automatic, 8 mm O.D. tubing
• Bowl Capacity: 45 ml
Material(s):
• Body Material(s): Die cast Aluminum
• Bowl Type: Polycarbonate with steel guard
• Bowl Guard: Steel
• Regulation Type: Relieving
• Filter Element: Coalescing filter, Borosilicate, 0.01 micron
• Deflector & Spinner: ABS
• O-Rings & Seals: EPDM rubber
FEATURES:
• Compact size
• High performance filter that removes solid particles and oil and water aerosols greater than 0.01 micron, of which 99.97 % of those between 0.3 and 0.6 Micron
• Standard semi-automatic drain requires a simple tug of the ring to drain
• Mounting bracket included
