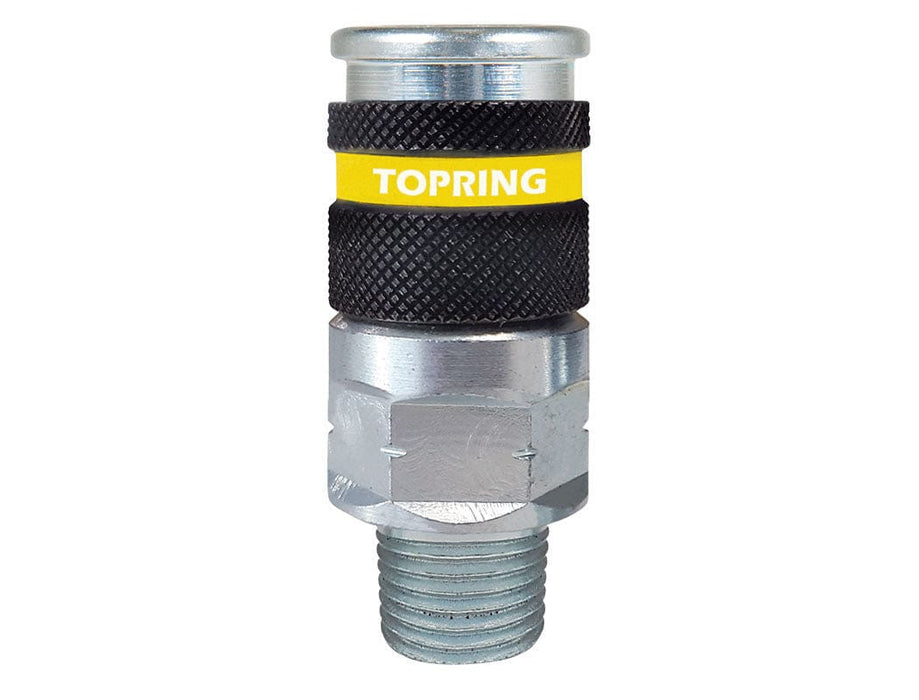

23.616.10 : Topring Quick Couplers : COUPLER QUIKSILVER 2 (ARO 210) 1/4 (M) NPT (AUTOMATIC) 10/CSE
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
23.616.10 : COUPLER QUIKSILVER 2 (ARO 210) 1/4 (M) NPT (AUTOMATIC) 10/CSE
SPECIFICATIONS
• Thread: 1/4 (M) NPT
• Maximum Working Pressure: 362 PSI
• Working Temperature: -20 to 60 °C
• Airflow: 44 SCFM at 100 PSI inlet with 10 PSI pressure drop
Material(s):
• Body: Zinc plated steel
• Drag Guard: Zinc plated steel
• Valve: Acetal
• Sleeve: Zinc plated steel
• Valve Spring: Stainless steel
• Locking Mechanism: Hardened steel
• Seals: Nitrile rubber
FEATURES
• Accept ARO 210 interchange plugs
• Compact design (Quiksilver 2 is 20 % lighter than Quiksilver couplers)
• Automatic push-to-connect operation with efficient and secure connection using ball locking mechanism
• High air volume with low pressure drop for a better tool performance
• High performance and corrosion-resistant coupler
• Drag guard protects against accidental disconnection
• Deep knurled sleeve for a better grip
