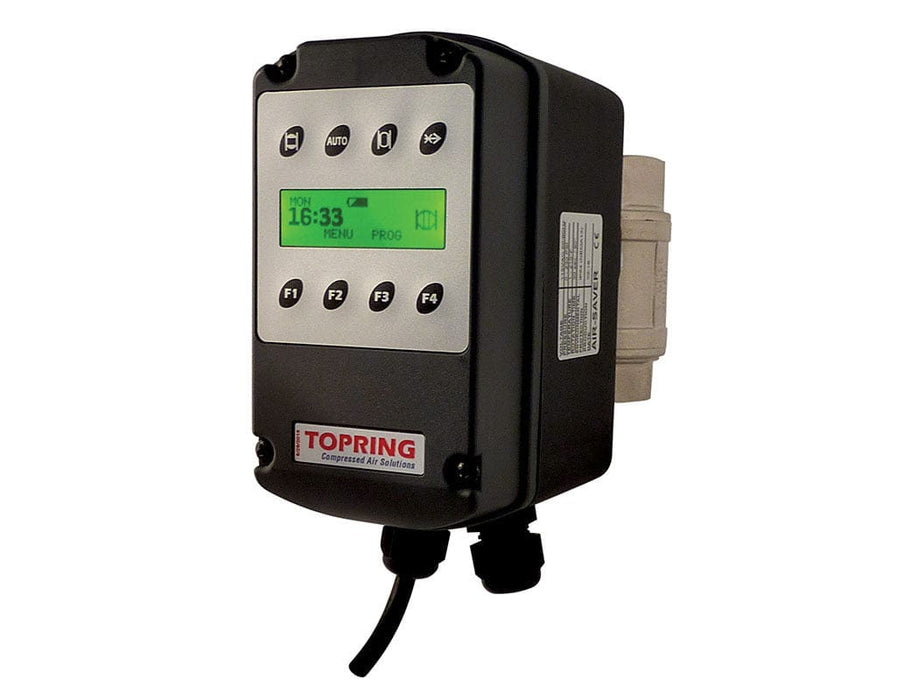

65.591 : TOPRING PROGRAMMABLE BALL VALVE AIR-SAVER 1 (F) NPT
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
65.591 : PROGRAMMABLE BALL VALVE AIR-SAVER 1 (F) NPT
SPECIFICATIONS
• Thread: 1 (F) NPT
• Maximum Working Pressure: 230 PSI
• Working Temperature: 1 to 50 °C
• Fluid Temperature: 1 to 100 °C
• Voltage: 115V / 50/60Hz
• Power Consumption: 7W during cycle rotation
• Classification: IP54 (NEMA 13)
• Opening/Closing duration: 30 sec
FEATURES
• Valve opens slowly to avoid water hammer in network
• Manual valve opening and closing possible, in case of a power failure
• Microprocessor controlled (multi cycle 7 day program)
• Each individual day can be programmed according to specific working day shift requirements
• Integral lithium battery protects program
• Reset Function
• Maintenance free
• Easy to obtain air in case of overtime work
• Large LCD display showing program cycle and current time
• Compact design - easy to install-easy to program
• No unnecessary start up of compressors during periods when compressed air is not required
• Allows the possibility to shut off sections of an air system where compressed air isn’t continuously needed
