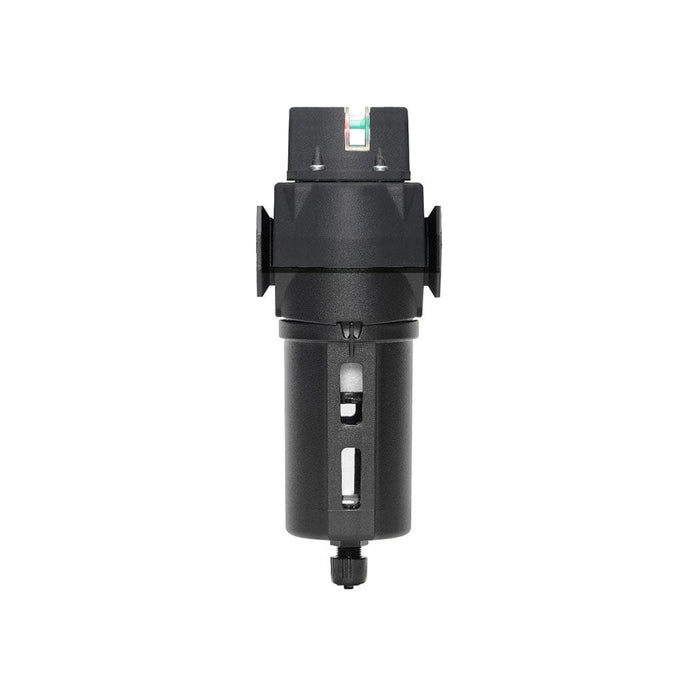

50.931A : TOPRING Coalescing Filter 1/2 (F) NPT With Standard Bowl and Automatic Drain Modulair 300

50.931A : TOPRING Coalescing Filter 1/2 (F) NPT With Standard Bowl and Automatic Drain Modulair 300

SPECIFICATIONS
• Port Size: 1/2 (F) NPT
• Ambient/Media Temperature:
Standard Bowl: 4 to 52 °C
• Inlet Pressure:
Standard Bowl with Automatic Drain: 30-150 PSI
• Filtration: 0.01 micron
• Drain: automatic
• Bowl Capacity: 151 ml
• Standard Bowl: Polycarbonate with nylon shatterguard
• Seals: Nitrile

FEATURES
• Modular or inline mounting
• High performance
• Designed to remove particulate material 99.98 % of free oil and solid contaminants 0.01 micron and larger
• Differential pressure gauge to indicate when filter element needs changing
• Front mounted clamping design with encapsulated screws
