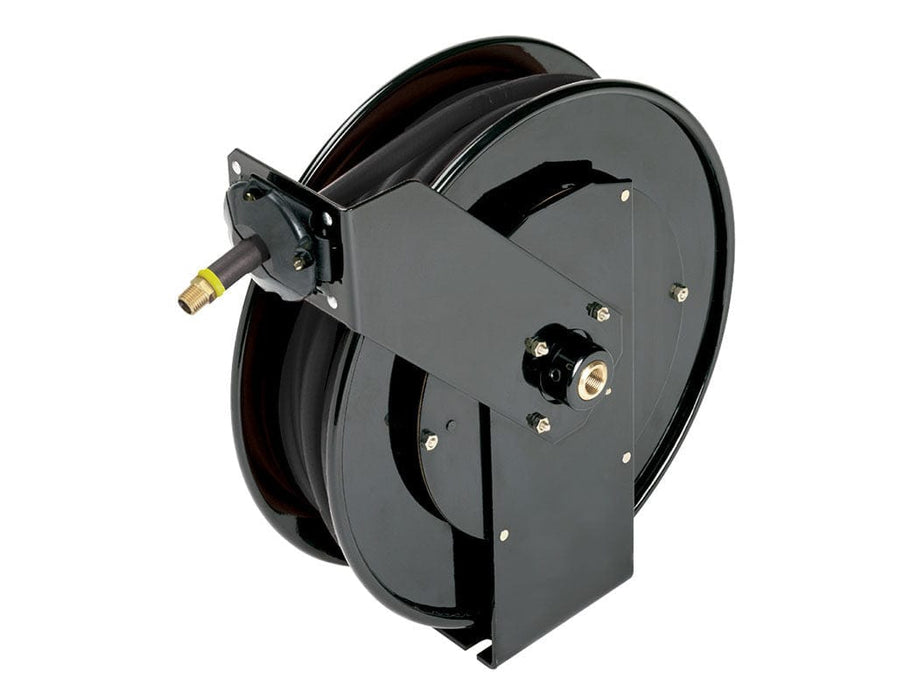

79.773 : Topring HOSE REEL STEELPRO/TOPFLEX 3/8 X 25' X 1/4 (M) NPT STD
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
79.773 : HOSE REEL STEELPRO/TOPFLEX 3/8 X 25' X 1/4 (M) NPT STD
SPECIFICATIONS
• Hose reel with hose
• Hose: Rubber TOPFLEX
• Hose I.D.: 3/8 in
• Hose Length: 25 ft
• Inlet: 1/2 (F) NPT
• Outlet: 1/4 (M) NPT
• Model: Standard
• Fluid: Compressed Air
• Maximum Working Pressure: 250 PSI
• Reel Color: Black
FEATURES
HOSE REEL
• Automatic retractable hose reel
• 1 arm bolted steel construction
• Heavy-duty mounting bracket
• Permanently lubricated drive-spring mechanism to ensure many years of dependable service
• One-piece combination latch, spring arbor, main bearing, and spool support for fewer moving parts
• All brass shaft and swivel reduce potential for corrosion
• Single set screw to access spring casing
• Fully closed bead on spool to prevent hose cutting
• Hidden latch mechanism to prevent grime buildup
• Adjustable drag brake/spool lock
• Durable powder coat finish
• Connecting hose not included
• Refer to product code 79.013 for the proper connecting hose
• Universal Installation: The narrow size and the fact that the guide arm can be easily rotated to any of the positions shown, solves virtually all installation problems
• Reels are shipped in the SF position
HOSE
• TOPFLEX: Rubber air hose with lock-on fittings
• Resistant to sparks and hot chips
• Tube extremely resistant to oils and heat (RMA-Class A)
• Cover with medium resistance to oils (RMA-Class B)
• Dielectric (non-conductive at 1000 volts D.C.)
• Ideal for various types of applications in factories, auto mechanics and body shops
• Maximum Working Pressure: 250 PSI
• Working Temperature: -29 to 99°C
