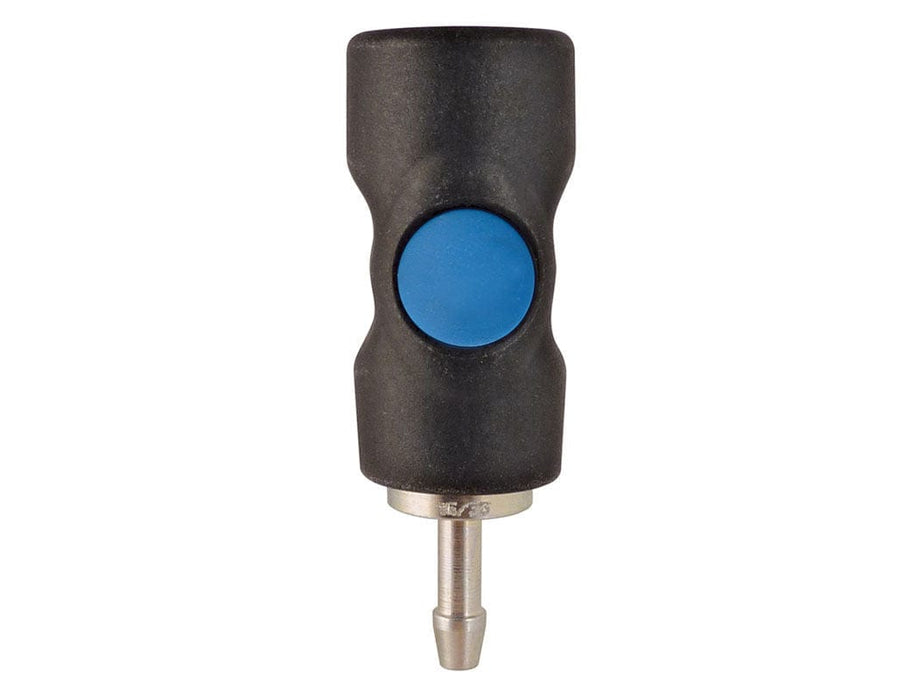

20.735 : Topring Quick Couplers : COUPLER TOPQUIK S1 SAFETY (1/4 INDUSTRIAL) HOSE BARB 3/8 (AUTOMATIC)
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
20.735 : COUPLER TOPQUIK S1 SAFETY (1/4 INDUSTRIAL) HOSE BARB 3/8 (AUTOMATIC)
SPECIFICATIONS
• Hose Barb: 3/8 I.D.
• Maximum Working Pressure: 174 PSI
• Working Temperature: -15 to 70 °C
• Airflow: 34 SCFM at 100 PSI inlet with 10 PSI pressure drop
Material(s):
• Body: Polyester composite
• Locking Mechanism: Stainless steel with anti-corrosion treatment
• Other coupler components: Steel or aluminum with anti-corrosion treatment RoHS compliant
• Seals: Nitrile rubber
• Push button: Composite
FEATURES
• Accept 1/4 INDUSTRIAL interchange plugs (A-A59439)
• Safe disconnection in a single push preventing the possibility of dangerous hose whips
• Downstream pressure automatically vented for easy disconnection at zero pressure
• Comply with the safety requirements of ISO 4414 standard
• ATEX certification (certified equipment intended for use in explosive atmospheres)
• Silicone-free composite body prevents the risk of compressed air contamination during paint or varnish applications
• Non-marring coupler body prevents scratching delicate surfaces
• Resistant to abrasion, vibrations, corrosion, impacts and crushing
• Leak-free design reduces energy costs
• Swivel body allows quick installation and optimal positioning
• Ball locking mechanism
