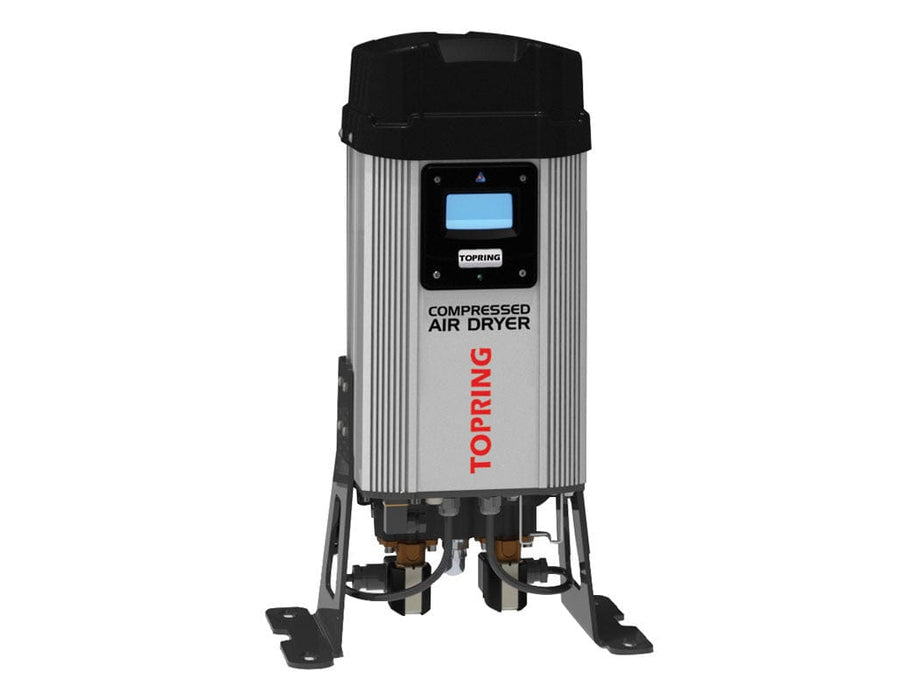

49.708 : TOPRING REGENERATIVE AIR DRYER 5 SCFM & FILTER M01
49.708 : TOPRING REGENERATIVE AIR DRYER 5 SCFM & FILTER M01
SPECIFICATIONS:
• Maximum Airflow Capacity: 5 SCFM
• Available upon special request up to 1110 SCFM
• Inlet/Outlet: 3/8 NPT
• Push-to-connect fitting on the inlet and outlet
• Dimensions: Height 44 cm, Width 23 cm, Depth 26 cm
• Weight: 8.5 kg
• Working Temperature: 10 to 40 °C
• Minimum Working Pressure: 58 PSI
• Maximum Working Pressure: 101 PSI
• Dew Point: -40 °C
• Universal Power Supply: 100V to 240V / 50Hz or 60Hz
• At 100 PSI, 38 °C inlet conditions and a -40 °C outlet pressure dew point
• CRN, CE and CSA
• For all other conditions, please contact TOPRING to select the proper model
Material(s):
• Extruded anodized powder-coated corrosion resistant, Aluminum
FEATURES:
• Moisture and particulate protection of the production process
• Low energy costs and simplified maintenance
• Safe and quiet operation
• Maximum protection against corrosion
• Heatless configuration
• Available upon special request up to 1110 SCFM
• CRN, CE , and CSA
• Rotary mounting brackets included with models 54.310, 54.312, 54.314
• Robust and reliable PL (programmable logic controller)
• PLC periodically switches the solenoid valves when the compressor is running, reversing the function of each column and therefore ensuring a continuous supply of dry air
• Available airflows from 10 to 212 SCFM at 100 PSI operating pressure
• Effectiveness pressure dew point at -40°C under pressure preventing vapor condensate from becoming liquid at a given pressure
• Compressed air contains moisture, such as water vapors, aerosols and contaminants, in addition to other impurities
• This moisture must be treated to prevent the growth of bacteria, mold, particulates and corrosion at the point of application
