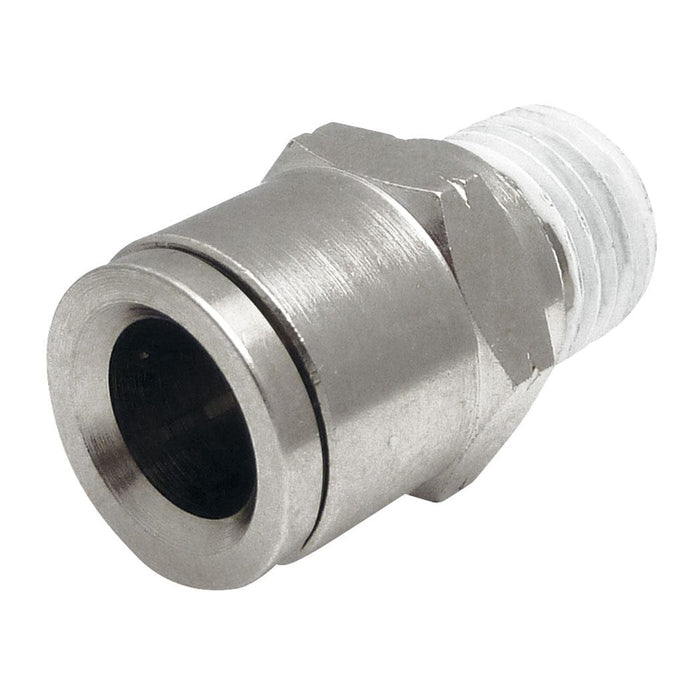

39.021 : Topring 10mm PTC-1/4MBSPT Adapt. X5 (PACK OF 5)
by TOPRING
Original price
$45.23
-
Original price
$45.23
Original price
$45.23
$45.23
-
$45.23
Current price
$45.23
39.021 : Topring 10mm PTC-1/4MBSPT Adapt. X5 (PACK OF 5)
Technical Specifications
- Product Series39
- Product TypeAdapters
- Sub-BrandTOPFIT
- Threads Sealant IncludedYes
- Inlet Connection TypePush-to-Connect Fitting
- Inlet Connection SubtypeMetric Self-Locking
- Inlet Nominal Size (Metric)10 mm
- Inlet Quantity2
- 2nd Inlet Connection TypeThreaded
- 2nd Inlet Connection SubtypeBSPT (R)
- 2nd Inlet Nominal Size (Imperial)1/4 in
- 2nd Inlet Connection GenderMale
- SwivelNo
- Maximum Inlet Pressure (PSI)290
- Maximum Vacuum Level (Inhg)-28
- Maximum Fluid Temperature (°C)80
- Compatible FluidsAir
- ColorSilver
- Body MaterialBrass
- Body FinishNickel Plated
- Release Sleeve MaterialNickel Plated Brass
- Seal MaterialNitrile/NBR
- Mechanism or Internal Moving Parts MaterialPolyoxymethylene/POM, Rubber, Stainless Steel
- Inlet Connection MaterialNickel Plated Brass
- 2nd Inlet Connection MaterialNickel Plated Brass
- Nominal Diameter (mm)10
