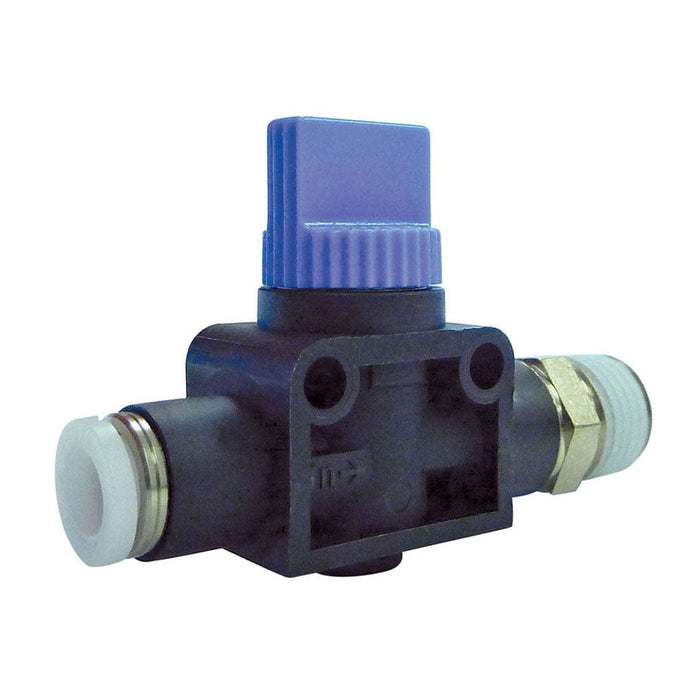

40.093 : Topring 3/8in. PTC-1/4MNPT 3Way Mini. Valve Adapt.
by TOPRING
Original price
$47.67
-
Original price
$47.67
Original price
$47.67
$47.67
-
$47.67
Current price
$47.67
40.093 : Topring 3/8in. PTC-1/4MNPT 3Way Mini. Valve Adapt.
Technical Specifications
- Product Series.. 40
- Product Type.. Miniature Ball Valves
- Sub-Brand.. TOPFIT
- Inlet Connection Type.. Push-to-Connect Fitting
- Inlet Connection Subtype.. Imperial Self-Locking
- Inlet Nominal Size (Imperial).. 3/8 in
- Inlet Quantity.. 1
- Outlet Quantity.. 1
- Outlet Connection Type.. Threaded
- Outlet Connection Subtype.. NPT
- Outlet Nominal Size (Imperial).. 1/4 in
- Outlet Connection Gender.. Male
- Swivel.. No
- Maximum Inlet Pressure (PSI).. 150
- Maximum Fluid Temperature (°C).. 60
- Compatible Fluids.. Air
- Color.. Black
- Body Material.. PBT Polymer
- Release Sleeve Material.. Polyacetate Resin
- Seal Material.. Nitrile/NBR
- Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
- Inlet Connection Material.. Polymer
- Outlet Connection Material.. Polymer
- Nominal Diameter (in).. 3/8
