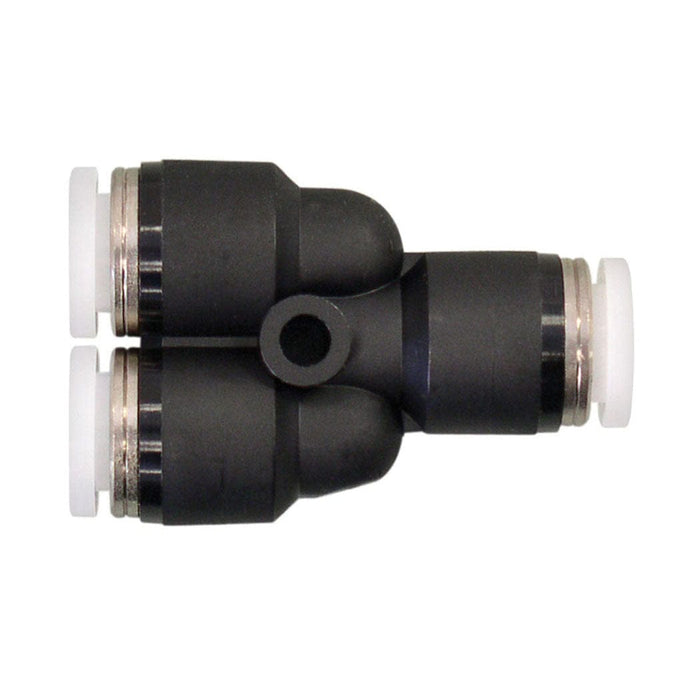

40.543 : Topring 1/4-5/32in. PTC Y Reducer X5 (PACK OF 5)

40.543 : Topring 1/4-5/32in. PTC Y Reducer X5 (PACK OF 5)

Technical Specifications

• Product Series.. 40
• Product Type.. Reducers
• Sub-Brand.. TOPFIT
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Nominal Size (Imperial).. 5/32 in
• Inlet Quantity.. 3
• 2nd Inlet Connection Type.. Push-to-Connect Fitting
• 2nd Inlet Connection Subtype.. Imperial Self-Locking
• 2nd Inlet Nominal Size (Imperial).. 1/4 in
• Swivel.. No
• Maximum Inlet Pressure (PSI).. 150
• Maximum Fluid Temperature (°C).. 60
• Compatible Fluids.. Air
• Color.. Black
• Body Material.. PBT Polymer
• Release Sleeve Material.. Polyacetate Resin
• Seal Material.. Nitrile/NBR
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Inlet Connection Material.. Polymer
• 2nd Inlet Connection Material.. Polymer
• Outlet Connection Material.. Polymer
• Nominal Diameter (in).. 1/4; 5/32
