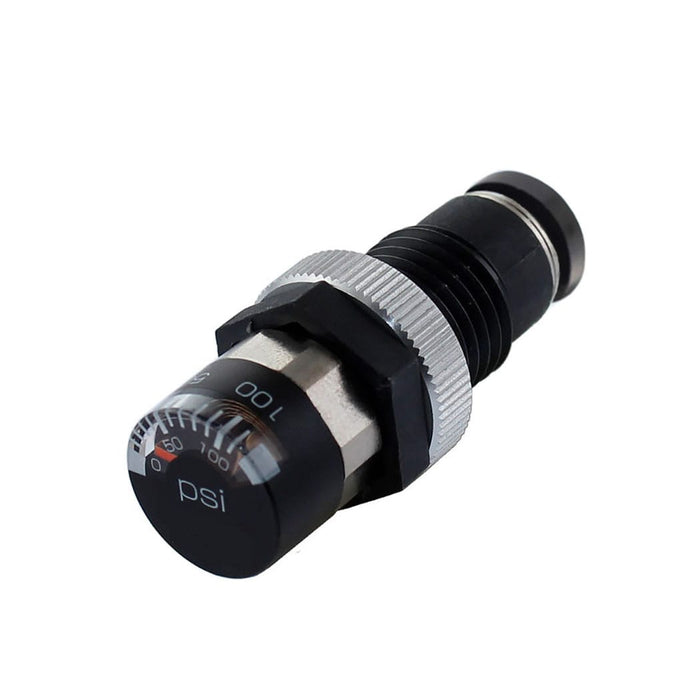

42.852 : Topring Bulkhead Union w/Gauge 8mm TOPFIT

42.852 : Topring Bulkhead Union w/Gauge 8mm TOPFIT

Technical Specifications

• Body Finish.. Nickel Plated
• Body Material.. Brass
• Color.. Black
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Metric Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Metric).. 8 mm
• Inlet Quantity.. 1
• Maximum Display Pressure (PSI).. 116
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Display Pressure (PSI).. 0
• Minimum Fluid Temperature (°C).. 0
• Nominal Diameter (mm).. 8
• Nut Material.. Nickel Plated Brass
• Product Series,, 42
• Product Type.. End Caps/Plugs
• Release Sleeve Material.. Polyacetate Resin
• Seal Material.. Nitrile/NBR
• Sub-Brand.. TOPFIT
• Swivel.. No
