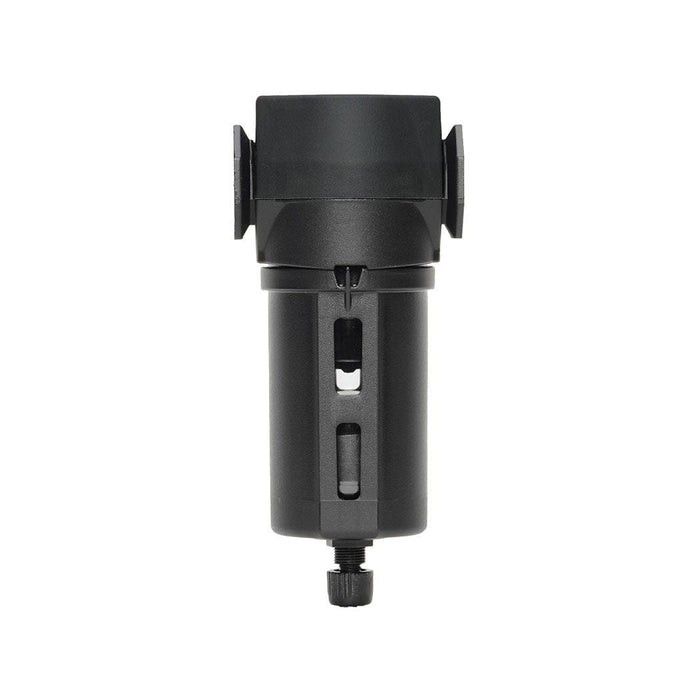

50.135A : TOPRING FILTER 1/2 MANUAL DRAIN WITH STANDARD BOWL MODULAIR 300

50.135A : TOPRING FILTER 1/2 MANUAL DRAIN WITH STANDARD BOWL MODULAIR 300

SPECIFICATIONS
• Port Size: 1/2 (F) NPT
• Maximum Airflow at 100 PSI: 1/2: 72 SCFM
• Ambient/Media Temperature:
Standard Bowl: 4 to 52 °C
• Inlet Pressure:
Standard Bowl with Manual Drain: 0-150 PSI
• Filtration: 5 micron
• Drain: Manual
• Bowl Capacity: 151 ml
• Standard Bowl: Polycarbonate with nylon shatterguard
• Seals: Nitrile

FEATURES
• Modular or inline mounting
• High performance
• Designed to remove particulate material to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Front mounted clamping design with encapsulated screws
