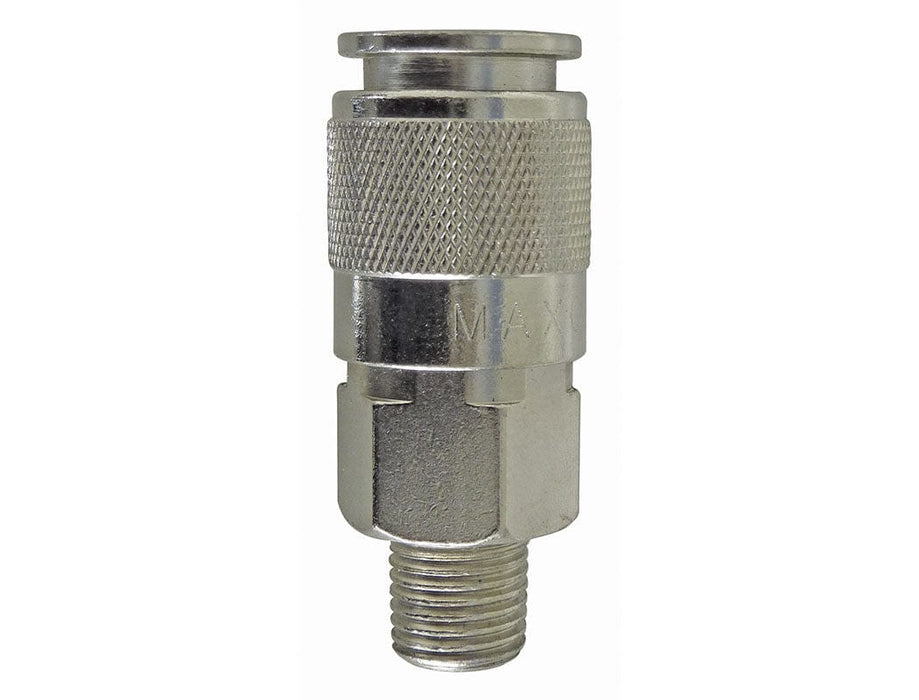

31.842.100 : Topring Quick Couplers : COUPLER AUTOMAX (ULTRAFLO) (AUTOMATIC) 1/4 (M) NPT 100/CSE
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC
31.842.100 : COUPLER AUTOMAX (ULTRAFLO) (AUTOMATIC) 1/4 (M) NPT 100/CSE
SPECIFICATIONS
• Thread: 1/4 (M) NPT
• Maximum Working Pressure: 200 PSI
• Working Temperature: -40 to 100 °C
• Airflow: 50 SCFM at 100 PSI inlet with 10 PSI pressure drop
Material(s):
• Body: Nickel plated steel
• Sleeve: Nickel plated steel
• Valve: Nickel plated steel
• Valve Spring: Zinc plated steel
• Locking Mechanism: Hardened nickel plated steel
• Seals: Nitrile rubber
FEATURES
• Accept European interchange plugs (CEJN 320)
• High-flow ULTRAFLO design provides superior tool performance
• Provides energy savings, increased productivity and superior tool efficiency
• Sleeve guard protects against accidental disconnection when the coupler is dragged across the floor or over obstructions
• Automatic push-to-connect operation
• Easy to connect, even under pressure
• Efficient and secure connection using ball locking mechanism
