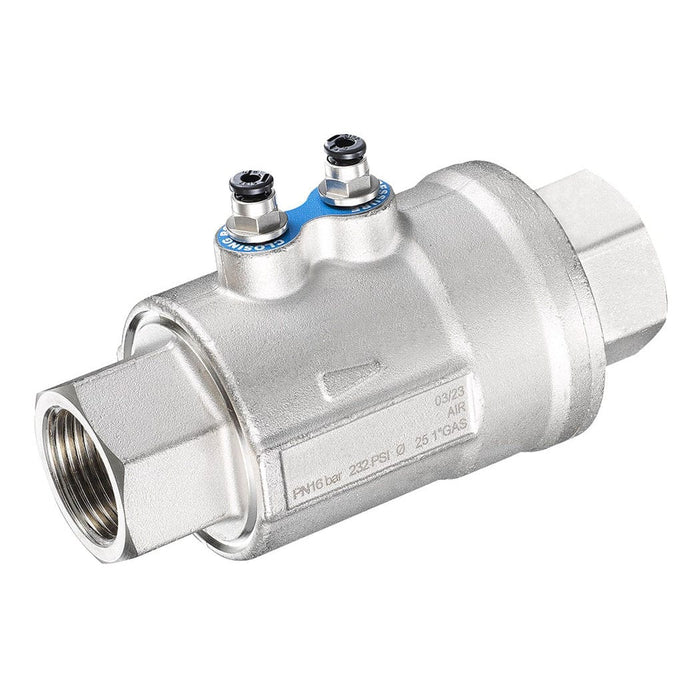

08.479 : Topring Remote Controlled Pneum. Valve 1/2(F)NPT PPS
by TOPRING
Original price
$674.38
-
Original price
$674.38
Original price
$674.38
$674.38
-
$674.38
Current price
$674.38
08.479 : Topring Remote Controlled Pneum. Valve 1/2(F)NPT PPS
Technical specifications
- Product series.. 08
- Product type.. Pilot-operated valves
- Sub-Brand.. Series 08
- Resting position.. Normally closed
- Type of control.. Pilot
- Number of positions.. 2
- Number of lanes.. 2
- Actuation type.. Pneumatic
- Compatible with outer tube diameters (mm).. 16
- Input connection type.. Threaded
- Input connection subtype.. NPT
- Nominal inlet size (imperial).. 1/2 in
- Type of input connection.. Female
- Number of outputs.. 1
- Output connection type.. Threaded
- Output connection subtype.. NPT
- Nominal outlet size (imperial).. 1/2 in
- Type of output connection.. Female
- With NEC.. Yes
- Body material.. Brass
- Control/pilot connection material.. Polymer
- Nominal diameter (mm).. 16
- Nominal Diameter (in).. 1/2
- Number of entries.. 1
