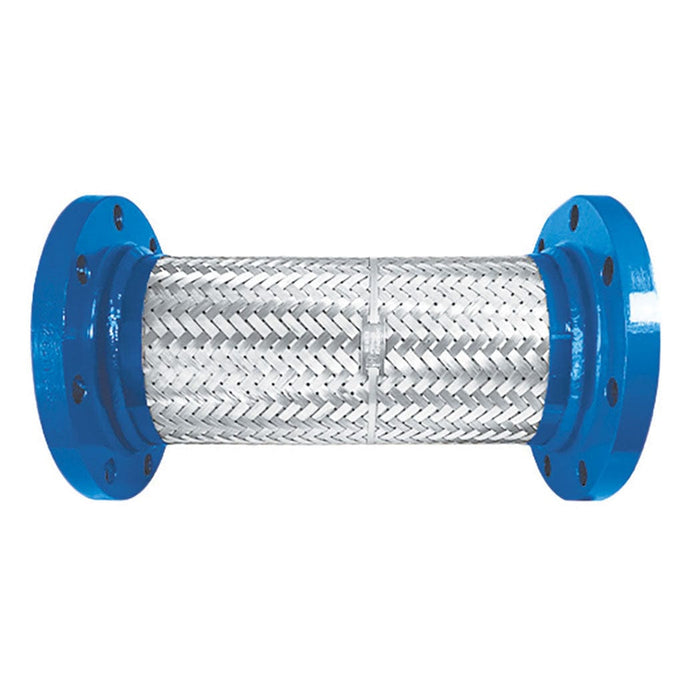

08.848 : Topring Flex. SSteel Anti-Vibr. Hose 12"xFlange 4"
by TOPRING
Original price
$714.33
-
Original price
$714.33
Original price
$714.33
$714.33
-
$714.33
Current price
$714.33
08.848 : Topring Flex. SSteel Anti-Vibr. Hose 12"xFlange 4"
Technical specifications
- Product series.. 08
- Product type.. Anti-vibration connection pipes
- Number of entries.. 2
- Input connection type.. V-clamp or ANSI/ISO flange
- Input connection subtype.. Series 08 Fitting
- Nominal inlet size (imperial).. 4 in
- Maximum fluid temperature (°C).. 250
- Maximum Inlet Pressure (PSI).. 284
- Inside Diameter (in).. 4
- Maximum Use Length (ft).. 1
- Maximum length of use (m).. 0.3048
- With NEC.. No
- Outer sheath material of the pipe.. Stainless steel
- Inlet connection material.. Steel
- Required installation hardware.. M16 bolts
- Type of connection of the 2nd input.. Male
- 2nd inlet connection material.. Steel
- 2nd input connection subtype.. NPT
- Nominal size of 2nd entry (imperial).. 4 in
- 2nd input connection type.. Threaded
