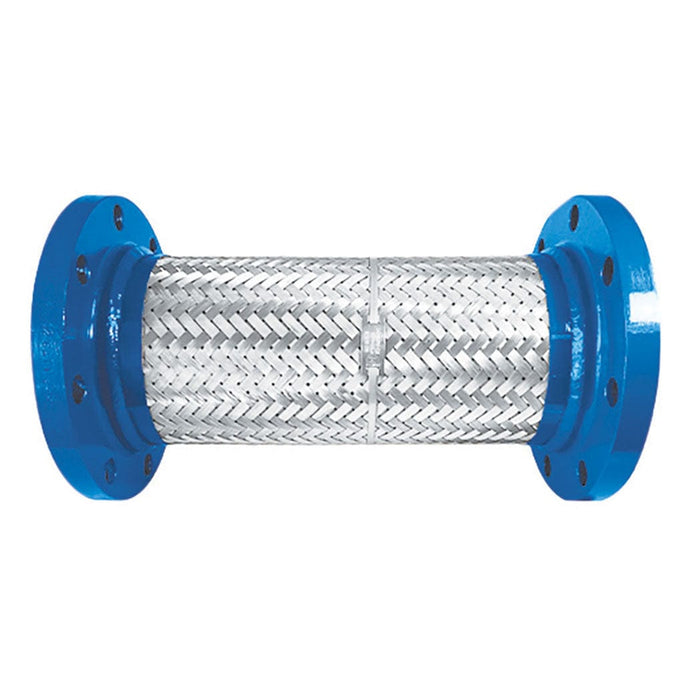

08.856.01 : Topring Flex. SSteel Anti-Vibr. Hose 24"x Flange 2-1/2"

08.856.01 : Topring Flex. SSteel Anti-Vibr. Hose 24"x Flange 2-1/2"

Technical specifications

• Product series.. 08
• Product type.. Anti-vibration connection pipes
• Number of entries.. 2
• Input connection type.. V-clamp or ANSI/ISO flange
• Input connection subtype.. Series 08 Fitting
• Nominal inlet size (imperial).. 2-1/2 in
• Maximum fluid temperature (°C).. 250
• Maximum Inlet Pressure (PSI).. 285
• Inside Diameter (in).. 2-1/2
• Maximum Use Length (ft).. 2
• Maximum length of use (m).. 0.6096
• With NEC.. No
• Outer sheath material of the pipe.. Stainless steel
• Inlet connection material.. Carbon steel
• Required installation hardware.. M16 bolts
• Type of connection of the 2nd input.. Male
• 2nd inlet connection material.. Carbon steel
• 2nd input connection subtype.. NPT
• Nominal size of 2nd entry (imperial).. 2-1/2 in
• 2nd input connection type.. Threaded
