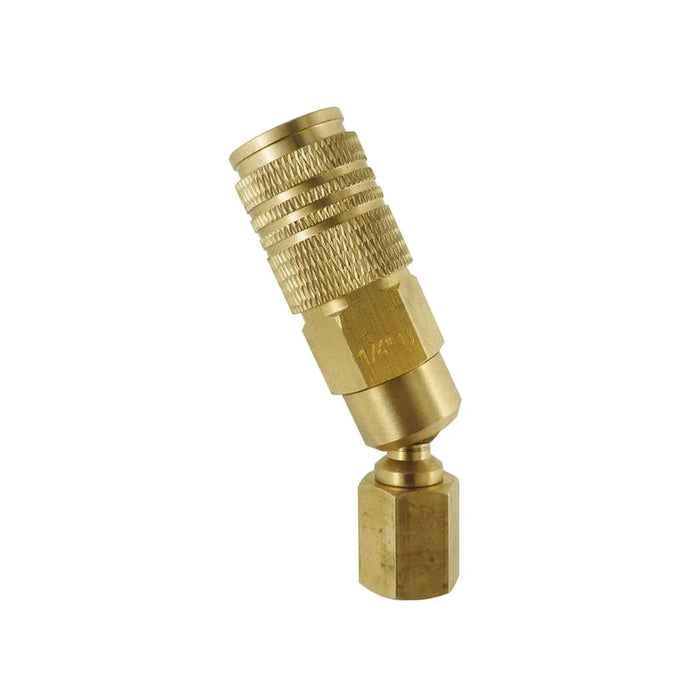

20.412C : Topring Swivel Coupler UNIQUIK (2in1) 1/4(F)NPT

20.412C : Topring Swivel Coupler UNIQUIK (2in1) 1/4(F)NPT

Technical specifications

• Product series.. 20
• Product type.. Pneumatic quick couplings
• Sub-Brand.. Uniquik
• Rotation capacity.. Continue
• Maximum rotation angle.. 360°
• Swivel.. Yes
• Maximum Inlet Pressure (PSI).. 150
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 1/4 in
• Type of input connection.. Female
• Output connection type.. Automatic
• Output connection subtype.. Industrial Profile, Truflate Profile
• Nominal outlet size (imperial)1/4 in
• Logout modeUnder pressure
• Compatible fluidsAir
• ColorMoney
• Body materialBrass
• Release ring materialZinc plated steel
• Spring materialStainless steel
• Material of locking balls or rollersNickel-plated steel
• Sealing gasket materialNitrile/NBR
• Material of the mechanism or internal moving partsStainless steel, Nickel-plated steel, Zinc-plated steel, Brass-plated zinc
• Inlet connection materialBrass
• Output connection materialBrass
