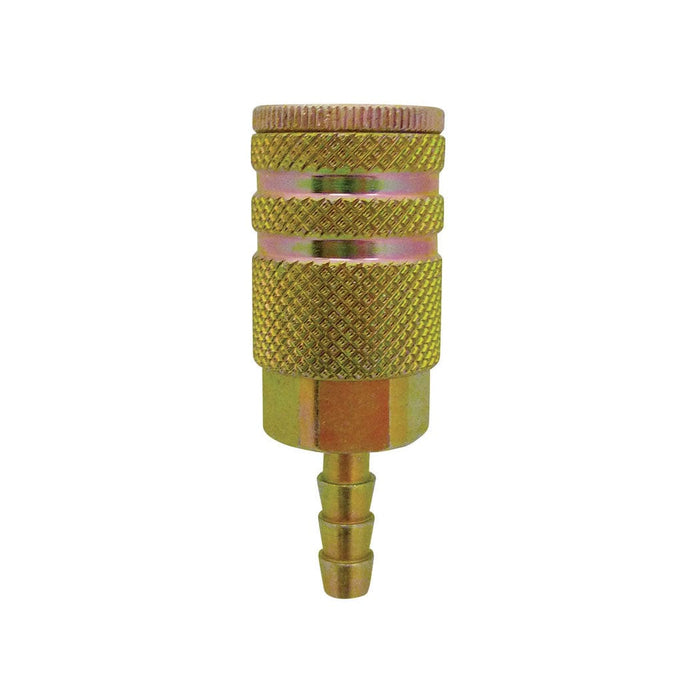

20.542C : Topring Coupler MAXQUIK (1/4 IND) Hose Barb 1/4

20.542C : Topring Coupler MAXQUIK (1/4 IND) Hose Barb 1/4

Technical specifications

• Product series.. 20
• Product type.. Pneumatic quick couplings
• Sub-Brand.. Maxquik
• Rotation capacity.. Continue
• Maximum rotation angle.. 360°
• Swivel.. No
• Nominal airflow (SCFM).. 24
• Maximum Inlet Pressure (PSI).. 250
• Maximum fluid temperature (°C).. 107
• Input connection type.. Barb
• Input connection subtype.. Imperial Regular Barb
• Nominal inlet size (imperial).. 1/4 in
• Output connection type.. Manual
• Output connection subtype.. Industrial Profile
• Nominal outlet size (imperial).. 1/4 in
• Logout mode.. Under pressure
• Compatible fluids.. Air
• Color.. Gold
• Body material.. Steel
• Body finish.. Zinc plated
• Release ring material.. Zinc plated steel
• Spring material.. Nickel-plated steel
• Material of locking balls or rollers.. Nickel-plated steel
• Sealing gasket material.. Nitrile/NBR
• Material of the mechanism or internal moving parts.. Nickel-plated steel
