20.760 : Topring Quick Couplers : COUPLER UNIQUIK (3 IN 1) HOSE BARB 3/8 (AUTOMATIC) (PACK OF 10 PCS.)
TOPRING PRODUCTS ARE DROPSHIPPED DIRECT FROM TOPRING WAREHOUSE IN QUEBEC

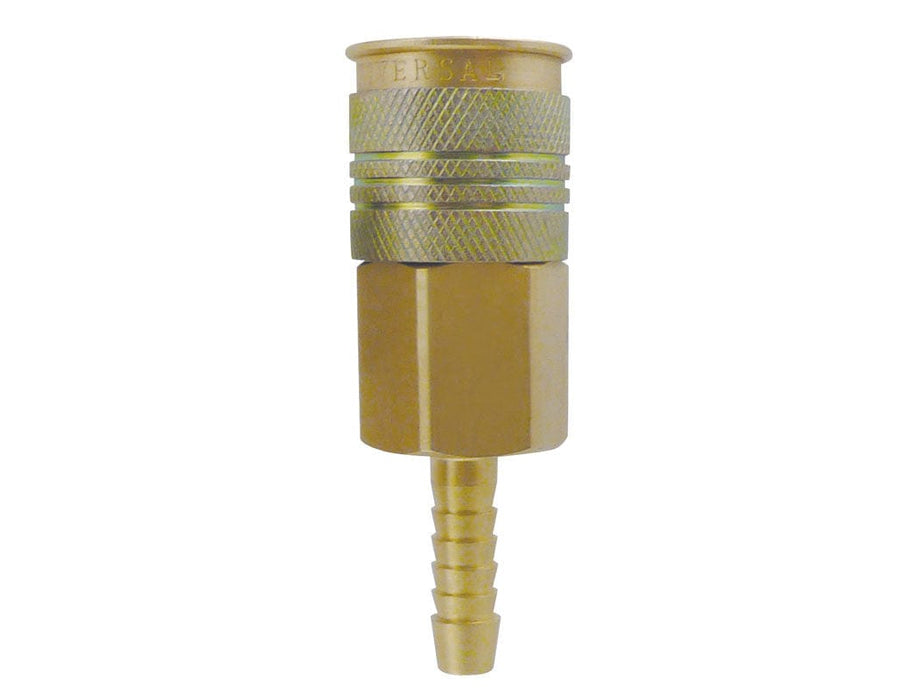

20.760 : COUPLER UNIQUIK (3 IN 1) HOSE BARB 3/8 (AUTOMATIC)
SPECIFICATIONS
• Hose Barb: 3/8 I.D.
• Maximum Working Pressure: 150 PSI
• Working Temperature: -40 to 71 °C
• Airflow: 35 SCFM at 100 PSI inlet with 10 PSI pressure drop
Material(s):
• Body: Brass
• Sleeve: Zinc plated steel / Nickel plated steel
• Valve: Brass plated zinc
• Valve Spring: Stainless steel
• Locking Mechanism: Nickel plated steel
• Seals: Nitrile rubber
FEATURES
• Accept 1/4 INDUSTRIAL, 1/4 TRUFLATE, and ARO 210 interchange plugs
• Automatic push-to-connect operation
• Sleeve guard protects against accidental disconnection when the coupler is dragged on the floor or over obstructions
• Deep knurled sleeve for a better grip
• Ball locking mechanism insuring on effective and secure connection
• Efficient and secure connection using ball locking mechanism
