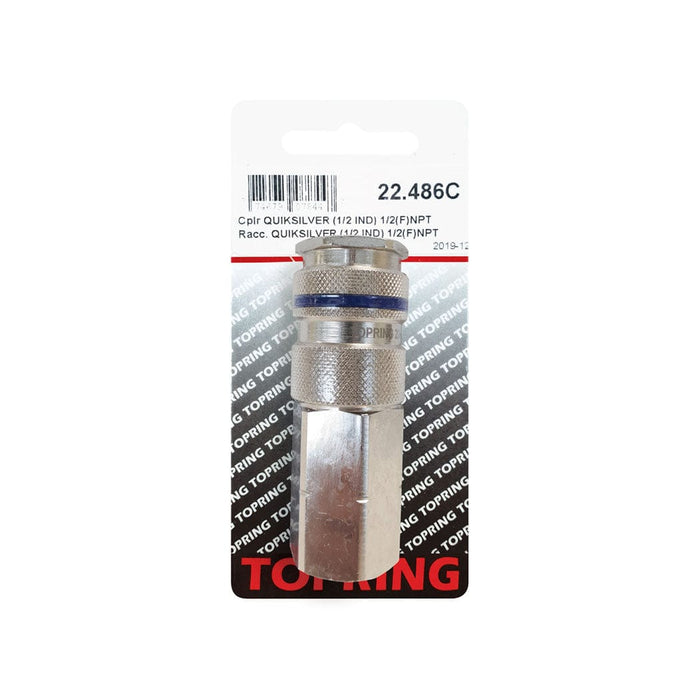

22.486C : Topring Cplr QUIKSILVER (1/2 IND) 1/2(F)NPT

22.486C : Topring Cplr QUIKSILVER (1/2 IND) 1/2(F)NPT

Technical specifications

• Product series.. 22
• Product type.. Pneumatic quick couplings
• Sub-Brand.. Quiksilver
• Rotation capacity.. Continue
• Maximum rotation angle.. 360°
• Swivel.. No
• Nominal airflow (SCFM).. 145
• Maximum Inlet Pressure (PSI).. 500
• Maximum fluid temperature (°C).. 100
• Input connection type.. Threaded
• Input connection subtype.. NPT
• Nominal inlet size (imperial).. 1/2 in
• Type of input connection.. Female
• Output connection type.. Automatic
• Output connection subtype.. Industrial Profile
• Nominal outlet size (imperial).. 1/2 in
• Logout mode.. Under pressure
• Compatible fluids.. Air
• Color.. Silver, Blue
• Color of the identification ring.. Blue
• Body material.. Brass
• Body finish.. Nickel plated/nickel plated
• Release ring material.. Nickel-plated steel
• Spring material.. Stainless steel
• Material of locking balls or rollers.. 420 stainless steel
• Sealing gasket material.. Nitrile/NBR
• Material of the mechanism or internal moving parts.. Stainless steel, Nickel-plated steel, Brass
• Maximum airflow (SCFM).. 145
