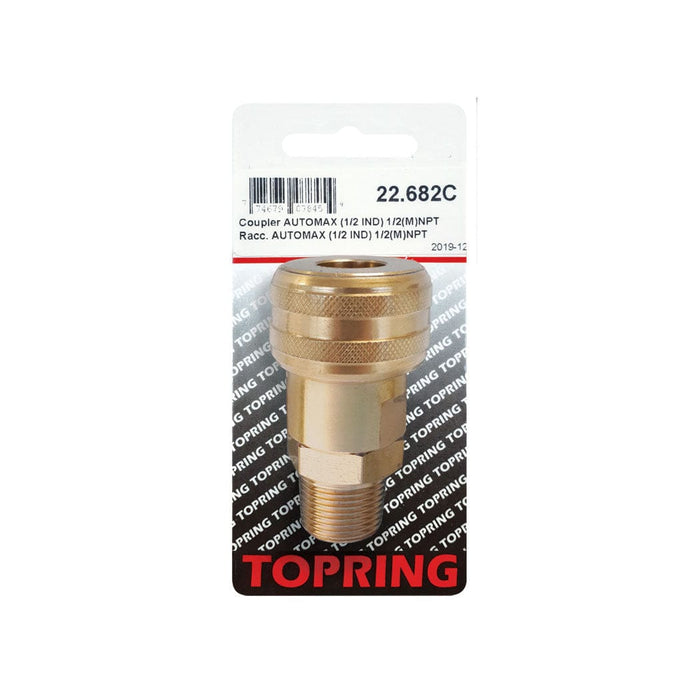

22.682C : Topring Coupler AUTOMAX (1/2 IND) 1/2(M)NPT
by TOPRING
Original price
$36.61
-
Original price
$36.61
Original price
$36.61
$36.61
-
$36.61
Current price
$36.61
22.682C : Topring Coupler AUTOMAX (1/2 IND) 1/2(M)NPT
Technical specifications
- Product series.. 22
- Product type.. Pneumatic quick couplings
- Sub-Brand.. Automax
- Thread sealant included.. No
- Rotation capacity.. Continue
- Maximum rotation angle.. 360°
- Swivel.. No
- Nominal airflow (SCFM).. 99
- Maximum Inlet Pressure (PSI).. 233
- Maximum fluid temperature (°C).. 121
- Input connection type.. Threaded
- Input connection subtype.. NPT
- Nominal inlet size (imperial).. 1/2 in
- Type of input connection.. Male
- Output connection type.. Automatic
- Output connection subtype.. Industrial Profile
- Nominal outlet size (imperial).. 1/2 in
- Logout mode.. Under pressure
- Compatible fluids.. Air
- Color.. Gold
- Body material.. Brass
- Sealant Coating Material.. PTFE/Fluoropolymer
- Release ring material.. Brass
- Spring material.. Stainless steel
- Material of locking balls or rollers.. Stainless steel
- Sealing gasket material.. Nitrile/NBR
- Material of the mechanism or internal moving parts.. Stainless steel, Zinc plated steel
- Maximum airflow (SCFM).. 99
