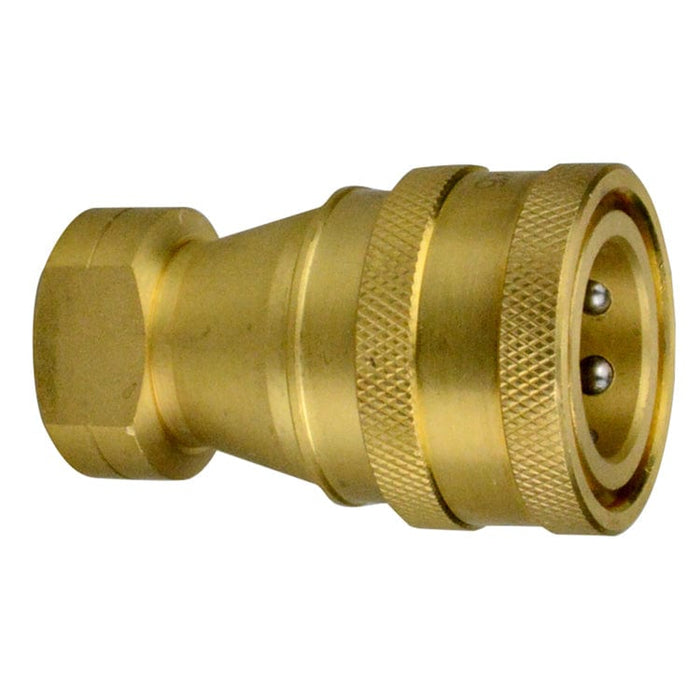

3/4" ISO-B BRASS HYDRAULIC COUPLER WITH FEMALE PIPE (NPTF) THREAD
Original price
$105.88
-
Original price
$105.88
Original price
$105.88
$105.88
-
$105.88
Current price
$105.88
3/4" ISO-B BRASS HYDRAULIC COUPLER WITH FEMALE PIPE (NPTF) THREAD
Specifications
| APPLICATION | Agriculture, Forestry, Industrial |
| BODY SIZE | 3/4" |
| FEMALE PIPE SIZE | 3/4" |
| FITTING CATEGORY | C100 Series ISO-B Hydraulic Couplings |
| FITTING TYPE | C100 Series Coupler |
| MATERIAL | Brass |
| THREAD DIMENSIONS | 3/4-14 |
| THREAD TYPE | Female Pipe (NPTF) |
| WEIGHT | 1.29 lb |
| WORKING PRESSURE | 2030 psi |
Construction
| TEMPERATURE RANGE | -40°C (-40°F) to 105°C (221°F) with buna-N (Nitrile) seals. -20°C (-4°F) to 200°C (392°F) with Viton seals. |
| INTERCHANGE | Snaptite 72, Hansen HK, Parker 60, Faster HNV, Aeroquip FD45, Holmbury IB. |
Equivalents:
| Aeroquip | FD45-1101-12-12 |
| DNP | HNV-B-12-12-C-NPT |
| Faster | HNV34-FB |
| Hansen | B6-H31 |
| Holmbury | IBB19-F-12N |
| Parker | BH6-60 |
| Perfecting | 6HF6B |
| Safeway | BS105-6 |
| Stucchi | F IRBOV34 NPT |
