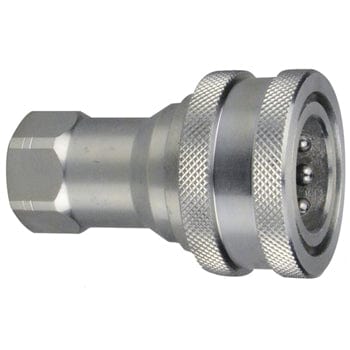

3/4" ISO-B HYDRAULIC COUPLER WITH FEMALE PIPE (NPTF) THREAD
Original price
$66.75
-
Original price
$66.75
Original price
$66.75
$66.75
-
$66.75
Current price
$66.75
3/4" ISO-B HYDRAULIC COUPLER WITH FEMALE PIPE (NPTF) THREAD
Specifications
| APPLICATION | Agriculture, Forestry, Industrial |
| BODY SIZE | 3/4" |
| FEMALE PIPE SIZE | 3/4" |
| FITTING CATEGORY | C100 Series ISO-B Hydraulic Couplings |
| FITTING TYPE | C100 Series Coupler |
| MATERIAL | Zinc-Plated Carbon Steel |
| THREAD DIMENSIONS | 3/4-14 |
| THREAD TYPE | Female Pipe (NPTF) |
| WEIGHT | 1.22 lb |
| WORKING PRESSURE | 4350 psi |
Construction
| TEMPERATURE RANGE | -40°C (-40°F) to 105°C (221°F) with buna-N (Nitrile) seals. -20°C (-4°F) to 200°C (392°F) with Viton seals. |
| INTERCHANGE | Snaptite 72, Hansen HK, Parker 60, Faster HNV, Aeroquip FD45, Holmbury IB. |
Equivalents:
| Aeroquip | FD45-1003-12-12 |
| DNP | HNV-12-12-C-NPT |
| Faster | HNV34-FS |
| Hansen | 6-H31 |
| Holmbury | IB19-F-12N |
| Parker | H6-62 |
| Perfecting | 6HF6 |
| Safeway | S105-6 |
| Snap-Tite | 72C-12-12-F |
| Stucchi | F IRB 34 NPT |
