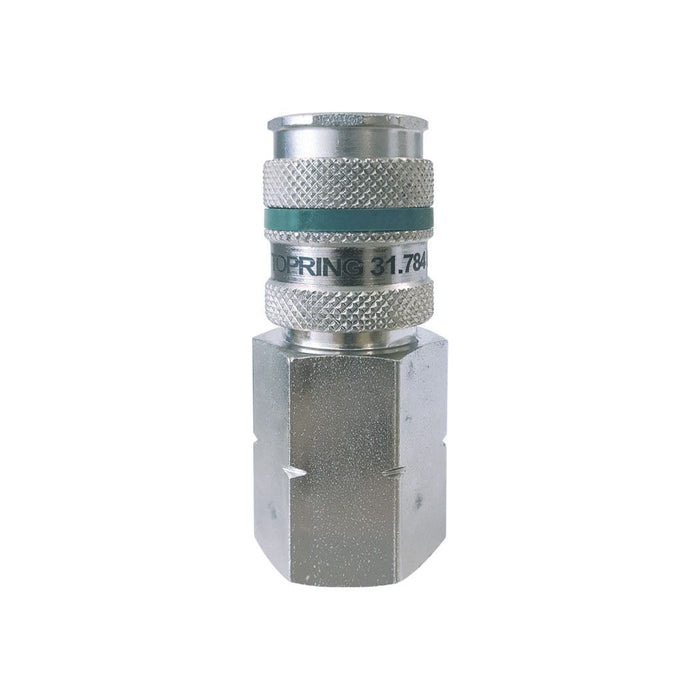

31.794 : Topring Cplr QUIKSILVER HD (ULTRAFLO) 1/2(F)NPT

31.794 : Topring Cplr QUIKSILVER HD (ULTRAFLO) 1/2(F)NPT

Technical Specifications

• Body Finish.. Zinc Plated
• Body Material.. Steel
• Color.. Green, Silver
• Compatible Fluids.. Air
• Disconnect Mode.. Pressurized
• Inlet Connection Gender.. Female
• Inlet Connection Subtype.. NPT
• Inlet Connection Type.. Threaded
• Inlet Nominal Size (Imperial).. 1/2 in
• Locking Balls or Rollers Material.. Stainless Steel 420
• Maximum Angle Of Rotation.. 360°
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 362
• Mechanism or Internal Moving Parts Material.. Stainless Steel, Zinc Plated Steel
• Minimum Fluid Temperature (°C).. -20
• Nominal Airflow Rate (SCFM).. 80
• Outlet Connection Subtype.. Euro (Ultraflo) Profile
• Outlet Connection Type.. Automatic
• Outlet Nominal Size (Metric).. 7.8 mm
• Product Series.. 31
• Product Type.. Pneumatic Quick Couplers
• Release Sleeve Material.. Zinc Plated Steel
• Ring Color Identification.. Green
• Rotation Capacity.. Continuous
• Seal Material.. Nitrile/NBR
• Spring Material.. Stainless Steel
• Sub-Brand.. QUIKSILVER HD
• Swivel.. No
