39.250.50 : Topring 1/4in. PTC-1/4MNPT Elbow Adapt. X50 (PACK OF 50)
by TOPRING
Original price
$429.52
-
Original price
$429.52
Original price
$429.52
$429.52
-
$429.52
Current price
$429.52

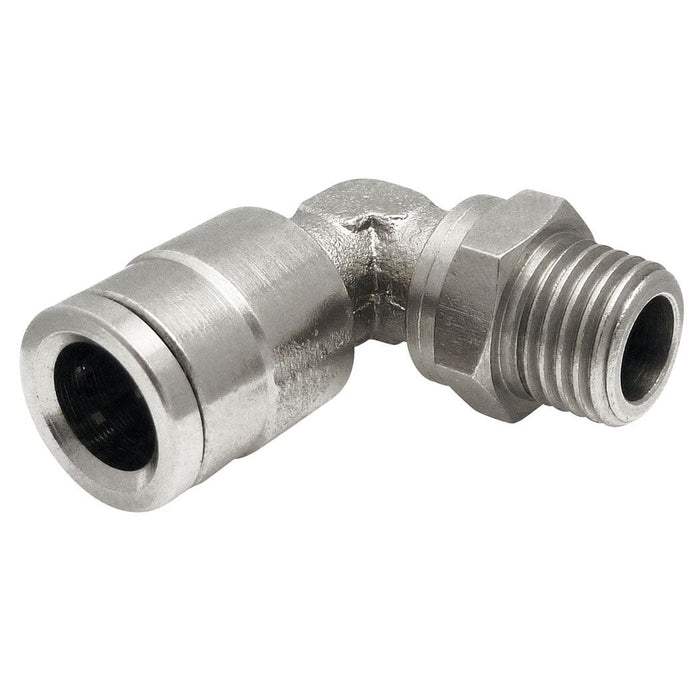

39.250.50 : Topring 1/4in. PTC-1/4MNPT Elbow Adapt. X50 (PACK OF 50)
Technical Specifications
- Product Series.. 39
- Product Type.. Adapters
- Shape.. 90° Elbow
- Sub-Brand.. TOPFIT
- Threads Sealant Included.. No
- Inlet Connection Type.. Push-to-Connect Fitting
- Inlet Connection Subtype.. Imperial Self-Locking
- Inlet Nominal Size (Imperial).. 1/4 in
- Inlet Quantity.. 2
- 2nd Inlet Connection Type.. Threaded
- 2nd Inlet Connection Subtype.. NPT
- 2nd Inlet Nominal Size (Imperial).. 1/4 in
- 2nd Inlet Connection Gender.. Male
- Rotation Capacity.. Occasional
- Swivel.. Yes
- Maximum Inlet Pressure (PSI).. 290
- Maximum Fluid Temperature (°C).. 80
- Compatible Fluids.. Air
- Color.. Silver
- Body Material.. Brass
- Body Finish.. Nickel Plated
- Release Sleeve Material.. Nickel Plated Brass
- Seal Material.. Nitrile/NBR
- Mechanism or Internal Moving Parts Material.. Polyoxymethylene/POM, Rubber, Stainless Steel
- Inlet Connection Material.. Nickel Plated Brass
- 2nd Inlet Connection Material.. Nickel Plated Brass
- Nominal Diameter (in).. 1/4
