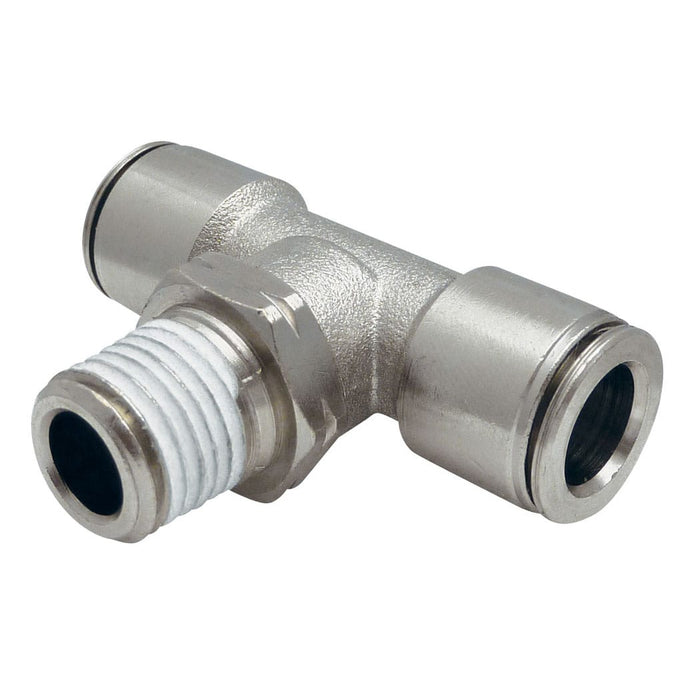

39.490 : Topring 3/8in. PTC-3/8MNPT Tee Adapt. X2

39.490 : Topring 3/8in. PTC-3/8MNPT Tee Adapt. X2

Technical Specifications

• 2nd Inlet Connection Gender.. Male
• 2nd Inlet Connection Material.. Nickel Plated Brass
• 2nd Inlet Connection Subtype.. NPT
• 2nd Inlet Connection Type.. Threaded
• 2nd Inlet Nominal Size (Imperial).. 3/8 in
• Body Finish.. Nickel Plated
• Body Material.. Brass
• Color.. Silver
• Compatible Fluids.. Air
• Inlet Connection Material.. Nickel Plated Brass
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Imperial).. 3/8 in
• Inlet Quantity.. 3
• Maximum Fluid Temperature (°C).. 80
• Maximum Inlet Pressure (PSI).. 290
• Maximum Vacuum Level (Inhg).. -28
• Mechanism or Internal Moving Parts Material.. Polyoxymethylene/POM, Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. -10
• Nominal Diameter (in).. 3/8
• Outlet Connection Material.. Nickel Plated Brass
• Product Series.. 39
• Product Type.. Adapters
• Release Sleeve Material.. Nickel Plated Brass
• Rotation Capacity.. Occasional
• Seal Material.. Nitrile/NBR
• Sub-Brand.. TOPFIT
• Swivel.. Yes
• Threads Sealant Included.. Yes
