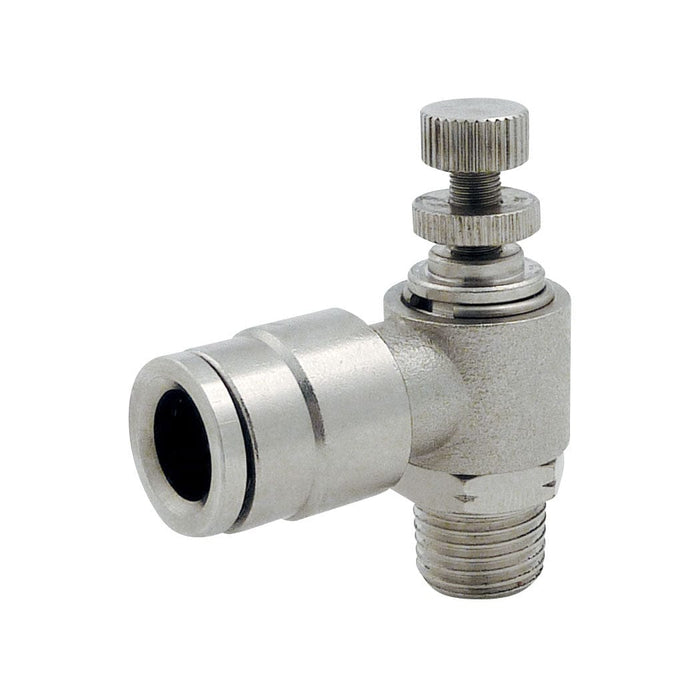

39.700 : Topring 1/4in.-1/8MNPT Flow Ctrl. Adapt.

39.700 : Topring 1/4in.-1/8MNPT Flow Ctrl. Adapt.

Technical Specifications

• Product Series.. 39
• Product Type.. Cylinder Flow Control Valves
• Sub-Brand.. TOPFIT
• Threads Sealant Included.. No
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Nominal Size (Imperial).. 1/4 in
• Inlet Quantity.. 1
• Outlet Quantity.. 1
• Outlet Connection Type.. Threaded
• Outlet Connection Subtype.. NPT
• Outlet Nominal Size (Imperial).. 1/8 in
• Outlet Connection Gender.. Male
• Swivel.. No
• Adjustability Capacity.. Yes
• Type of Regulation.. Meter-Out
• Maximum Inlet Pressure (PSI).. 290
• Maximum Vacuum Level (Inhg).. -28
• Maximum Fluid Temperature (°C).. 80
• Compatible Fluids.. Air
• Color.. Silver
• Body Material.. Brass
• Body Finish.. Nickel Plated
• Release Sleeve Material.. Nickel Plated Brass
• Seal Material.. Nitrile/NBR
• Mechanism or Internal Moving Parts Material.. Polyoxymethylene/POM, Rubber, Stainless Steel
• Inlet Connection Material.. Nickel Plated Brass
• 2nd Inlet Connection Material.. Nickel Plated Brass
• Nominal Diameter (in).. 1/4
