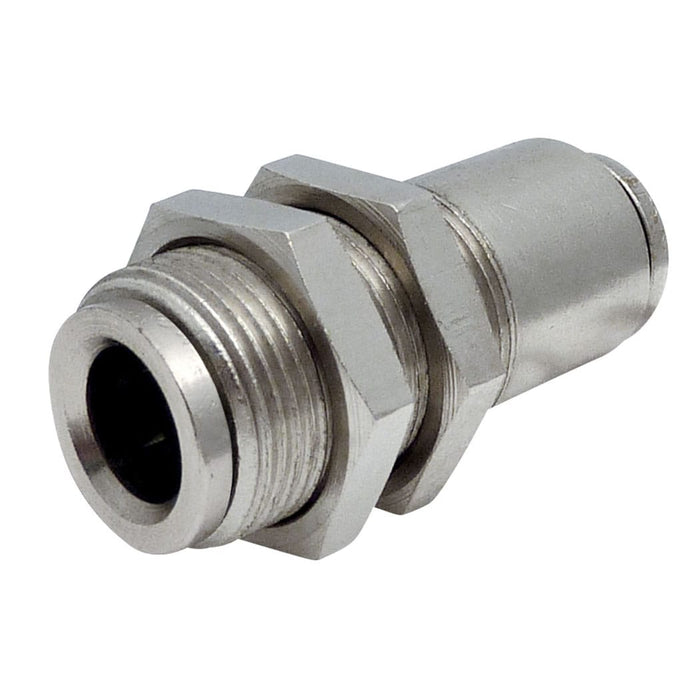

39.820 : Topring 4mm PTC Bulkhead Union X2

39.820 : Topring 4mm PTC Bulkhead Union X2

Technical Specifications

• 2nd Inlet Connection Material.. Nickel Plated Brass
• Body Finish.. Nickel Plated
• Body Material.. Brass
• Color.. Silver
• Compatible Fluids.. Air
• Inlet Connection Material.. Nickel Plated Brass
• Inlet Connection Subtype.. Metric Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Metric).. 4 mm
• Inlet Quantity.. 2
• Maximum Fluid Temperature (°C)80
• Maximum Inlet Pressure (PSI).. 290
• Maximum Vacuum Level (Inhg).. -28
• Mechanism or Internal Moving Parts Material.. Polyoxymethylene/POM, Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. -10
• Nominal Diameter (mm).. 4
• Product Series.. 39
• Product Type.. Unions
• Release Sleeve Material.. Nickel Plated Brass
• Seal Material.. Nitrile/NBR
• Sub-Brand.. TOPFIT
• Swivel.. No
• Threads Sealant Included.. No
