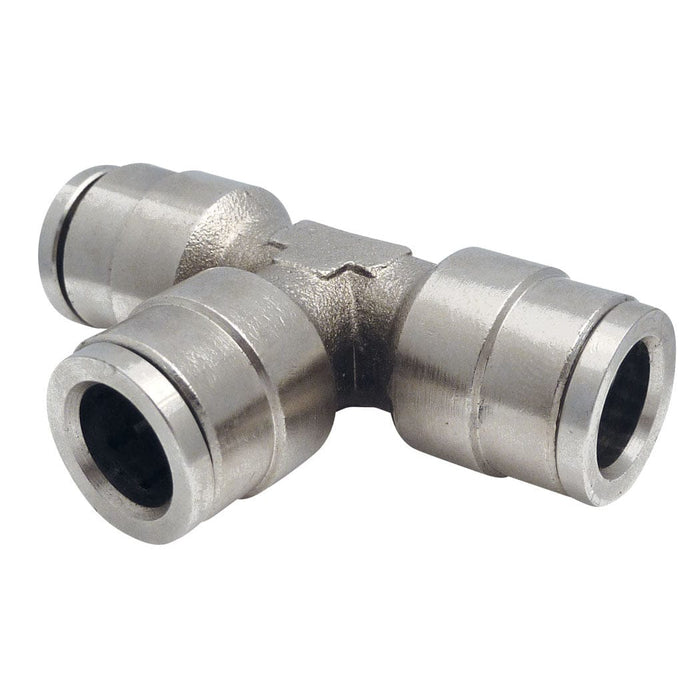

39.846 : Topring 10mm PTC Tee Union X2 (PACK OF 2)
by TOPRING
Original price
$45.32
-
Original price
$45.32
Original price
$45.32
$45.32
-
$45.32
Current price
$45.32
39.846 : Topring 10mm PTC Tee Union X2 (PACK OF 2)
Technical Specifications
- Product Series.. 39
- Product Type.. Unions
- Sub-Brand.. TOPFIT
- Inlet Connection Type.. Push-to-Connect Fitting
- Inlet Connection Subtype.. Metric Self-Locking
- Inlet Nominal Size (Metric).. 10 mm
- Inlet Quantity.. 3
- Swivel.. No
- Maximum Inlet Pressure (PSI).. 290
- Maximum Vacuum Level (Inhg).. -28
- Maximum Fluid Temperature (°C).. 80
- Compatible Fluids.. Air
- Color.. Silver
- Body Material.. Brass
- Body Finish.. Nickel Plated
- Release Sleeve Material.. Nickel Plated Brass
- Seal Material.. Nitrile/NBR
- Mechanism or Internal Moving Parts Material.. Polyoxymethylene/POM, Rubber, Stainless Steel
- Inlet Connection Material.. Nickel Plated Brass
- 2nd Inlet Connection Material.. Nickel Plated Brass
- Outlet Connection Material.. Nickel Plated Brass
- Nominal Diameter (mm).. 10
