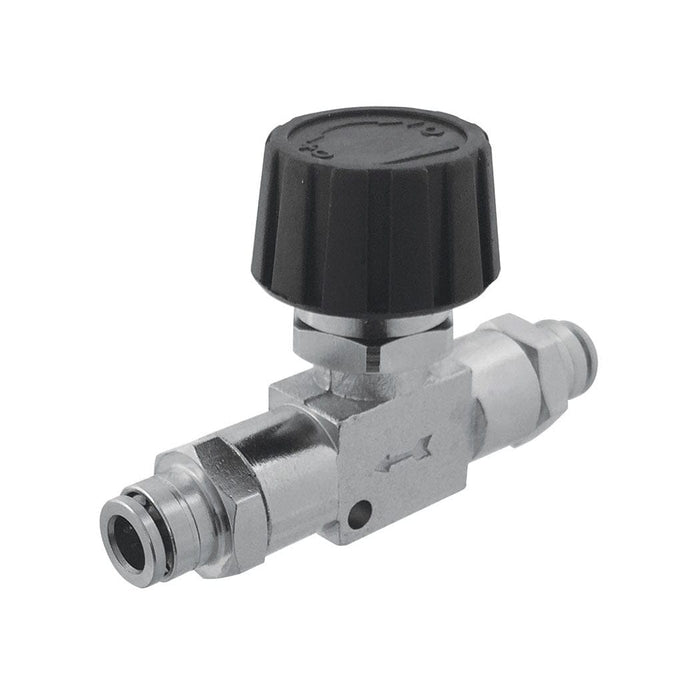

39.944 : Topring 6mm PTC Flow Ctrl. Union X2 (PACK OF 2)

39.944 : Topring 6mm PTC Flow Ctrl. Union X2 (PACK OF 2)

Technical Specifications

• Product Series.. 39
• Product Type.. Cylinder Flow Control Valves
• Sub-Brand.. TOPFIT
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Connection Subtype.. Metric Self-Locking
• Inlet Nominal Size (Metric).. 6 mm
• Inlet Quantity.. 1
• Outlet Quantity.. 1
• Outlet Connection Type.. Push-to-Connect Fitting
• Outlet Connection Subtype.. Metric Self-Locking
• Outlet Nominal Size (Metric).. 6 mm
• Swivel.. No
• Adjustability Capacity.. Yes
• Type of Regulation.. Non-directional
• Maximum Inlet Pressure (PSI).. 290
• Maximum Vacuum Level (Inhg).. -28
• Maximum Fluid Temperature (°C).. 80
• Compatible Fluids.. Air
• Color.. Silver
• Body Material.. Brass
• Body Finish.. Nickel Plated
• Release Sleeve Material.. Nickel Plated Brass
• Seal Material.. Nitrile/NBR
• Mechanism or Internal Moving Parts Material.. Polyoxymethylene/POM, Rubber, Stainless Steel
• Inlet Connection Material.. Nickel Plated Brass
• 2nd Inlet Connection Material.. Nickel Plated Brass
• Nominal Diameter (mm).. 6
