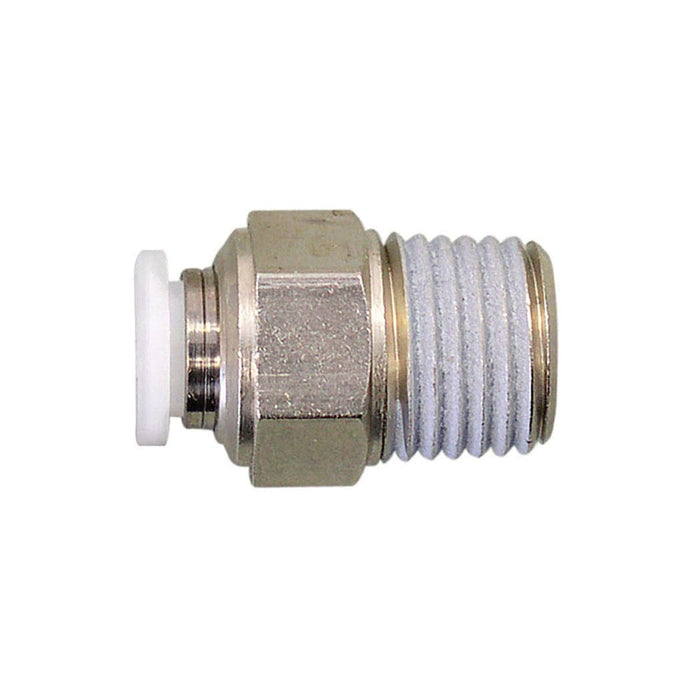

40.126 : Topring (M) Connector 3/16 x 1/8(M)NPT TOPFIT

40.126 : Topring (M) Connector 3/16 x 1/8(M)NPT TOPFIT

Technical Specifications

• 2nd Inlet Connection Gender.. Male
• 2nd Inlet Connection Material.. Nickel Plated Brass
• 2nd Inlet Connection Subtype.. NPT
• 2nd Inlet Connection Type.. Threaded
• 2nd Inlet Nominal Size (Imperial).. 1/8 in
• Body Material.. PBT Polymer
• Color.. Silver
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Imperial).. 3/16 in
• Inlet Quantity.. 2
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. 0
• Nominal Diameter (in).. 3/16
• Product Series.. 40
• Product Type.. Adapters
• Release Sleeve Material.. Polyacetate Resin
• Seal Material.. Nitrile/NBR
• Shape.. Straight
• Sub-Brand.. TOPFIT
• Swivel.. No
• Threads Sealant Included.. Yes
