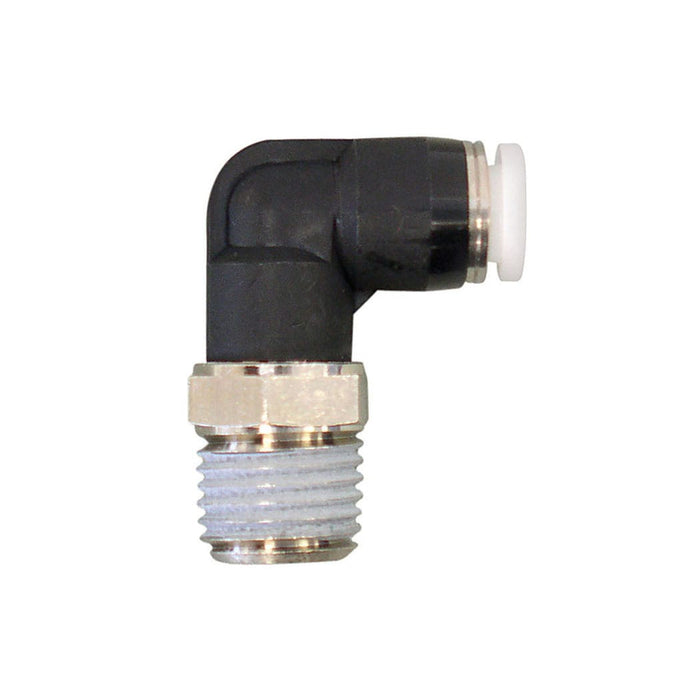

40.240 : Topring 5/32in. PTC-1/8MNPT Elbow Adapt. X5
by TOPRING
Original price
$36.31
-
Original price
$36.31
Original price
$36.31
$36.31
-
$36.31
Current price
$36.31
40.240 : Topring 5/32in. PTC-1/8MNPT Elbow Adapt. X5
Technical Specifications
- 2nd Inlet Connection Gender.. Male
- 2nd Inlet Connection Material.. Nickel Plated Brass
- 2nd Inlet Connection Subtype.. NPT
- 2nd Inlet Connection Type.. Threaded
- 2nd Inlet Nominal Size (Imperial).. 1/8 in
- Body Material.. PBT Polymer
- Color.. Black
- Compatible Fluids.. Air
- Inlet Connection Material.. Polymer
- Inlet Connection Subtype.. Imperial Self-Locking
- Inlet Connection Type.. Push-to-Connect Fitting
- Inlet Nominal Size (Imperial).. 5/32 in
- Inlet Quantity.. 2
- Maximum Fluid Temperature (°C).. 60
- Maximum Inlet Pressure (PSI).. 150
- Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
- Minimum Fluid Temperature (°C).. 0
- Nominal Diameter (in).. 5/32
- Product Series.. 40
- Product Type.. Adapters
- Release Sleeve Material.. Polyacetate Resin
- Rotation Capacity.. Occasional
- Seal Material.. Nitrile/NBR
- Sub-Brand.. TOPFIT
- Swivel.. Yes
- Threads Sealant Included.. Yes
