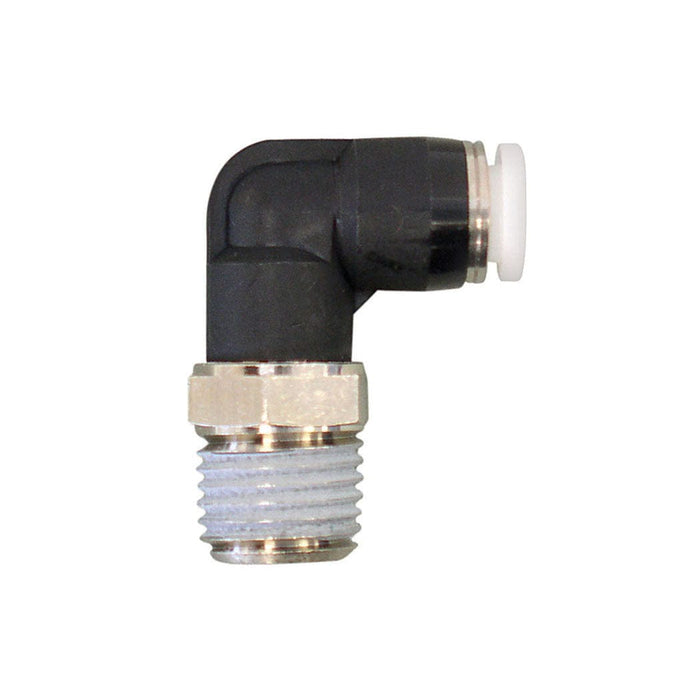

40.250.05 : Topring 1/4in. PTC-1/8MNPT Elbow Adapt. X5 (PACK OF 5)
by TOPRING
Original price
$45.86
-
Original price
$45.86
Original price
$45.86
$45.86
-
$45.86
Current price
$45.86
40.250.05 : Topring 1/4in. PTC-1/8MNPT Elbow Adapt. X5 (PACK OF 5)
Technical Specifications
- Product Series.. 40
- Product Type.. Adapters
- Sub-Brand.. TOPFIT
- Threads Sealant Included.. Yes
- Inlet Connection Type.. Push-to-Connect Fitting
- Inlet Connection Subtype.. Imperial Self-Locking
- Inlet Nominal Size (Imperial).. 1/4 in
- Inlet Quantity.. 2
- 2nd Inlet Connection Type.. Threaded
- 2nd Inlet Connection Subtype.. NPT
- 2nd Inlet Nominal Size (Imperial).. 1/8 in
- 2nd Inlet Connection Gender.. Male
- Rotation Capacity.. Occasional
- Swivel.. Yes
- Maximum Inlet Pressure (PSI).. 150
- Maximum Fluid Temperature (°C).. 60
- Compatible Fluids.. Air
- Color.. Black
- Body Material.. PBT Polymer
- Release Sleeve Material.. Polyacetate Resin
- Seal Material.. Nitrile/NBR
- Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
- Inlet Connection Material.. Polymer
- 2nd Inlet Connection Material.. Nickel Plated Brass
- Nominal Diameter (in).. 1/4
