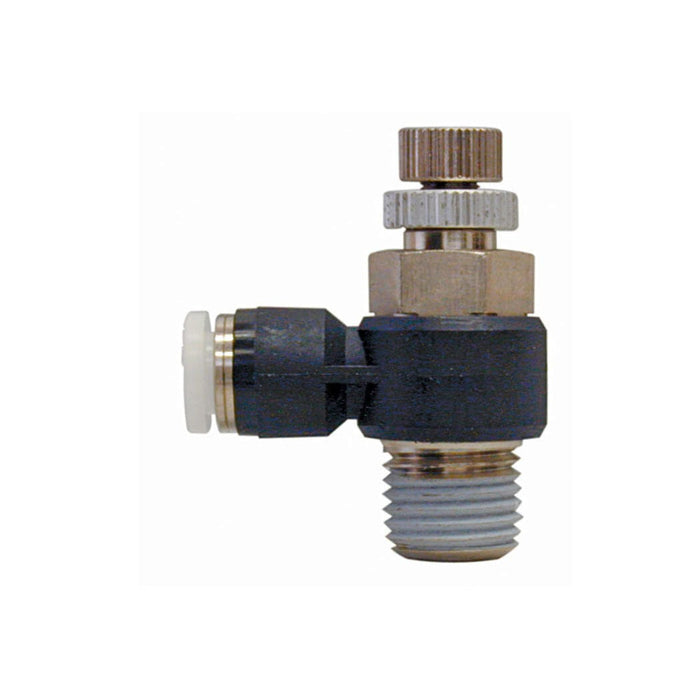

40.900 : Topring 5/32in. PTC-1/8MNPT Flow Ctrl. Adapt. X2

40.900 : Topring 5/32in. PTC-1/8MNPT Flow Ctrl. Adapt. X2

Technical Specifications

• 2nd Inlet Connection Material.. Nickel Plated Brass
• Adjustability Capacity.. Yes
• Body Material.. PBT Polymer
• Color.. Black, Silver
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Imperial).. 5/32 in
• Inlet Quantity.. 1
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. 0
• Nominal Diameter (in).. 5/32
• Outlet Connection Gender.. Male
• Outlet Connection Subtype.. NPT
• Outlet Connection Type.. Threaded
• Outlet Nominal Size (Imperial).. 1/8 in
• Outlet Quantity.. 1
• Product Series.. 40
• Product Type.. Cylinder Flow Control Valves
• Release Sleeve Material.. Polyacetate Resin
• Seal Material.. Nitrile/NBR
• Shape.. 90° Elbow
• Sub-Brand.. TOPFIT
• Swivel.. No
• Threads Sealant Included.. Yes
• Type of Regulation.. Meter-Out
