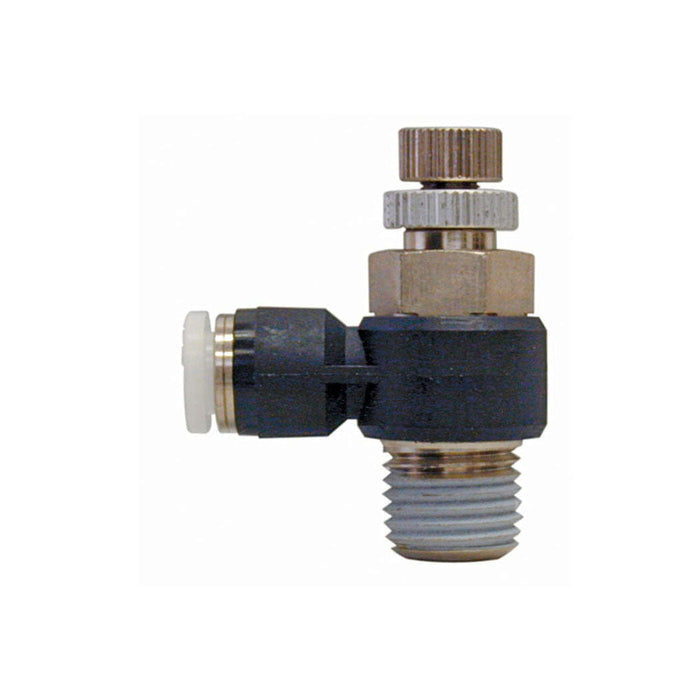

40.906 : Topring 1/4in. PTC-1/4MNPT Flow Ctrl. Adapt.
by TOPRING
Original price
$43.50
-
Original price
$43.50
Original price
$43.50
$43.50
-
$43.50
Current price
$43.50
40.906 : Topring 1/4in. PTC-1/4MNPT Flow Ctrl. Adapt.
Technical Specifications
- Product Series.. 40
- Product Type.. Cylinder Flow Control Valves
- Sub-Brand.. TOPFIT
- Threads Sealant Included.. Yes
- Inlet Connection Type.. Push-to-Connect Fitting
- Inlet Connection Subtype.. Imperial Self-Locking
- Inlet Nominal Size (Imperial).. 1/4 in
- Inlet Quantity.. 1
- Outlet Quantity.. 1
- Outlet Connection Type.. Threaded
- Outlet Connection Subtype.. NPT
- Outlet Nominal Size (Imperial).. 1/4 in
- Outlet Connection Gender.. Male
- Swivel.. No
- Adjustability Capacity.. Yes
- Type of Regulation.. Meter-Out
- Maximum Inlet Pressure (PSI).. 150
- Maximum Fluid Temperature (°C).. 60
- Compatible Fluids.. Air
- Color.. Black, Silver
- Body Material.. PBT Polymer
- Release Sleeve Material.. Polyacetate Resin
- Seal Material.. Nitrile/NBR
- Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
- Inlet Connection Material.. Polymer
- 2nd Inlet Connection Material.. Nickel Plated Brass
- Nominal Diameter (in).. 1/4
