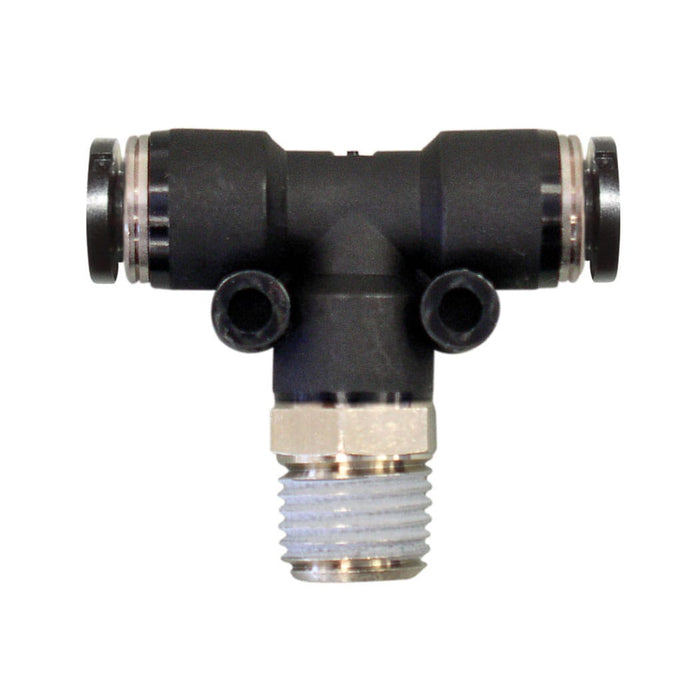

42.685 Topring (M) Swivel Branch Tee 12mm x 1/2 (M)BSPT TOPFIT (BAG OF 5)
by TOPRING
Original price
$65.10
-
Original price
$65.10
Original price
$65.10
$65.10
-
$65.10
Current price
$65.10
42.685 Topring (M) Swivel Branch Tee 12mm x 1/2 (M)BSPT TOPFIT (BAG OF 5)
Technical Specifications
- 2nd Inlet Connection Gender.. Male
- 2nd Inlet Connection Material.. Polymer
- 2nd Inlet Connection Subtype.. BSPT (R)
- 2nd Inlet Connection Type.. Threaded
- 2nd Inlet Nominal Size (Imperial).. 1/2 in
- Body Material.. PBT Polymer
- Color.. Black
- Compatible Fluids.. Air
- Inlet Connection Material.. Polymer
- Inlet Connection Subtype.. Metric Self-Locking
- Inlet Connection Type.. Push-to-Connect Fitting
- Inlet Nominal Size (Metric).. 12 mm
- Inlet Quantity.. 3
- Maximum Fluid Temperature (°C).. 60
- Maximum Inlet Pressure (PSI).. 150
- Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
- Minimum Fluid Temperature (°C).. 0
- Nominal Diameter (mm).. 12
- Outlet Connection Material.. Nickel Plated Brass
- Product Series.. 42
- Product Type.. Adapters
- Release Sleeve Material.. Polyacetate Resin
- Rotation Capacity.. Occasional
- Seal Material.. Nitrile/NBR
- Sub-Brand.. TOPFIT
- Swivel.. Yes
- Threads Sealant Included.. Yes
