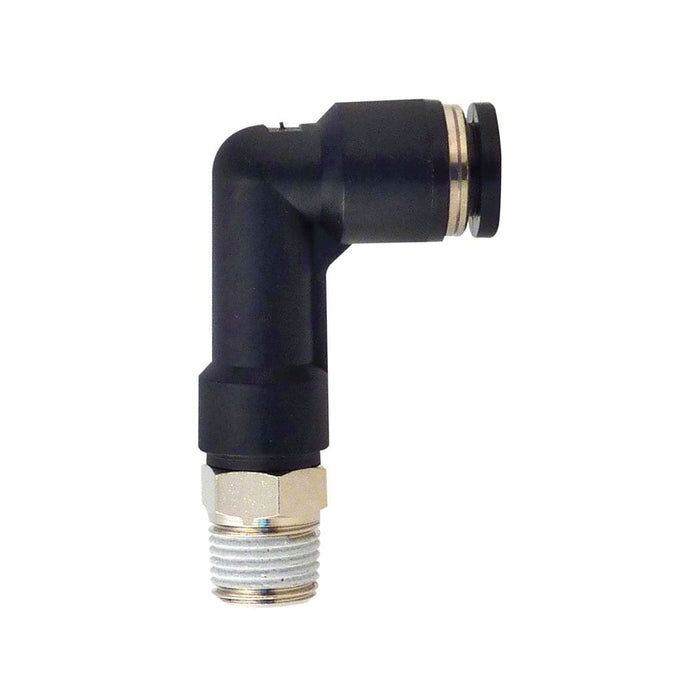

42.795 Topring (M/F) Univ. Elbow 6mm x 1/8(M)(F)BSPT TOPFIT (BAG OF 2)

42.795 Topring (M/F) Univ. Elbow 6mm x 1/8(M)(F)BSPT TOPFIT (BAG OF 2)

Technical Specifications

• 2nd Inlet Connection Gender.. Male
• 2nd Inlet Connection Material.. Nickel Plated Brass
• 2nd Inlet Connection Subtype.. BSPT (R)
• 2nd Inlet Connection Type.. Threaded
• 2nd Inlet Nominal Size (Imperial).. 1/8 in
• Body Material.. PBT Polymer
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Metric Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Metric).. 6 mm
• Inlet Quantity.. 2
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Minimum Fluid Temperature (°C).. 0
• Nominal Diameter (mm).. 6
• Product Series.. 42
• Product Type.. Adapters
• Release Sleeve Material.. Polyacetate Resin
• Rotation Capacity.. Occasional
• Seal Material.. Nitrile/NBR
• Sub-Brand.. TOPFIT
• Swivel.. No
• Threads Sealant Included.. Yes
