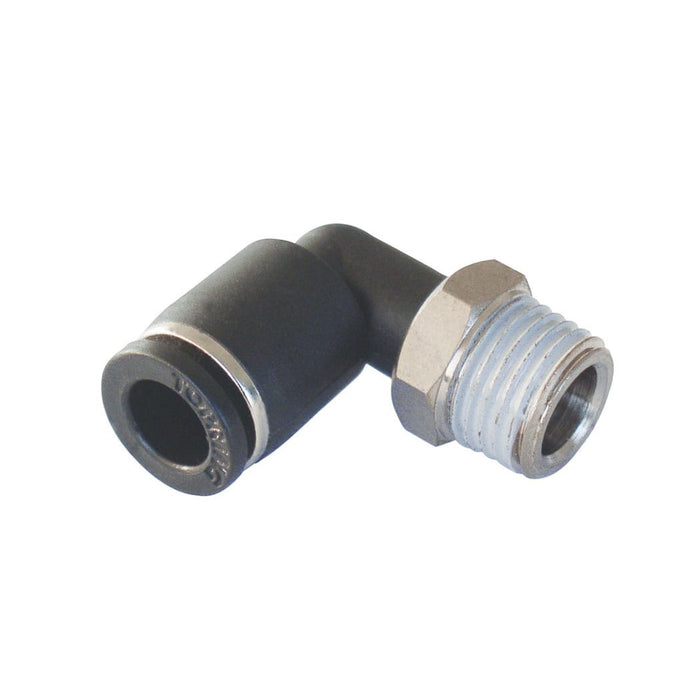

44.285 Topring (M) Swivel Elbow 3/8 x 1/2(M)NPT MAXFIT (BAG OF 5)

44.285 Topring (M) Swivel Elbow 3/8 x 1/2(M)NPT MAXFIT (BAG OF 5)

Technical Specifications

• 2nd Inlet Connection Gender.. Male
• 2nd Inlet Connection Material.. Nickel Plated Brass
• 2nd Inlet Connection Subtype.. NPT
• 2nd Inlet Connection Type.. Threaded
• 2nd Inlet Nominal Size (Imperial).. 1/2 in
• Body Material.. PBT Polymer
• Color.. Black
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Imperial).. 3/8 in
• Inlet Quantity.. 2
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. 5
• Nominal Diameter (in).. 3/8
• Product Series.. 44
• Product Type.. Adapters
• Release Sleeve Material.. Polyacetate Resin
• Rotation Capacity.. Occasional
• Seal Material.. Nitrile/NBR
• Shape.. 90° Elbow
• Sub-Brand.. MAXFIT
• Swivel.. Yes
• Threads Sealant Included.. Yes
