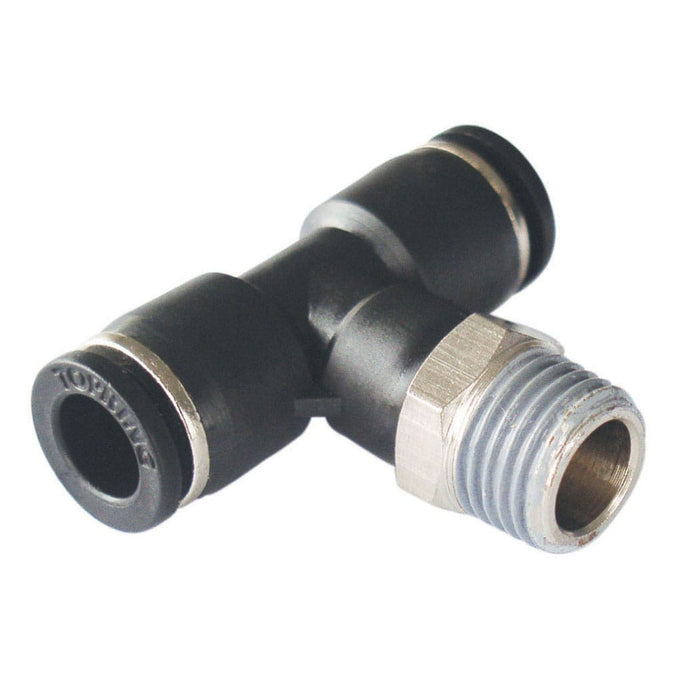

44.343 Topring (M) Swivel Branch Tee 5/32 x 10-32(M)UNF MAXFIT (BAG OF 10)

44.343 Topring (M) Swivel Branch Tee 5/32 x 10-32(M)UNF MAXFIT (BAG OF 10)

Technical Specifications

• 2nd Inlet Connection Gender.. Male
• 2nd Inlet Connection Material.. Polymer
• 2nd Inlet Connection Subtype.. NPT
• 2nd Inlet Connection Type.. Threaded
• 2nd Inlet Nominal Size (Imperial).. 10-32 UNF
• Body Material.. PBT Polymer
• Color.. Black
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Imperial).. 5/32 in
• Inlet Quantity.. 3
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. 5
• Nominal Diameter (in).. 5/32
• Outlet Connection Material.. Nickel Plated Brass
• Product Series.. 44
• Product Type.. Adapters
• Release Sleeve Material.. Polyacetate Resin
• Rotation Capacity.. Occasional
• Seal Material.. Nitrile/NBR
• Sub-Brand.. MAXFIT
• Swivel.. Yes
• Threads Sealant Included.. Yes
