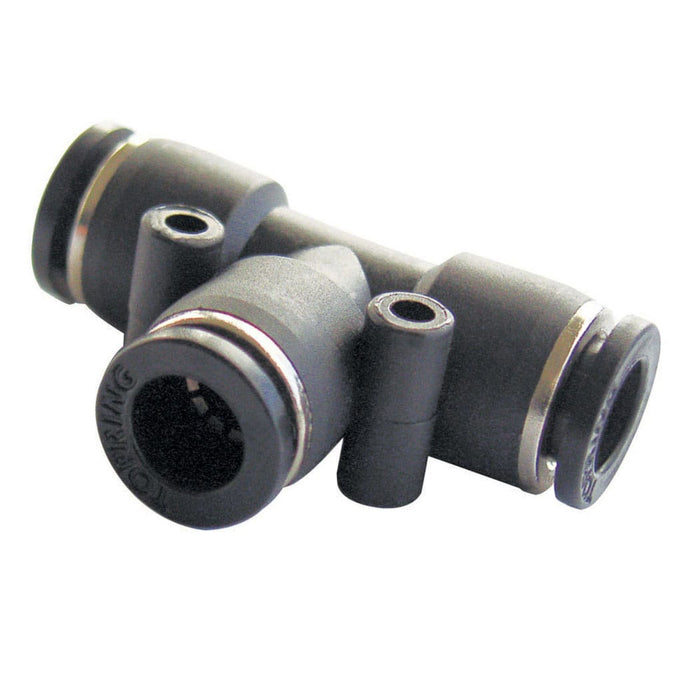

44.430.50 Topring Union Tee 1/4 MAXFIT 50/cse (BAG OF 50)

44.430.50 Topring Union Tee 1/4 MAXFIT 50/cse (BAG OF 50)

Technical Specifications

• 2nd Inlet Connection Material.. Polymer
• Body Material.. PBT Polymer
• Color.. Black
• Compatible Fluids.. Air
• Inlet Connection Material.. Polymer
• Inlet Connection Subtype.. Imperial Self-Locking
• Inlet Connection Type.. Push-to-Connect Fitting
• Inlet Nominal Size (Imperial).. 1/4 in
• Inlet Quantity.. 3
• Maximum Fluid Temperature (°C).. 60
• Maximum Inlet Pressure (PSI).. 150
• Mechanism or Internal Moving Parts Material.. Rubber, Stainless Steel
• Minimum Fluid Temperature (°C).. 5
• Nominal Diameter (in).. 1/4
• Outlet Connection Material.. Polymer
• Product Series.. 44
• Product Type.. Unions
• Release Sleeve Material.. Polyacetate Resin
• Seal Material.. Nitrile/NBR
• Sub-Brand.. MAXFIT
• Swivel.. No
